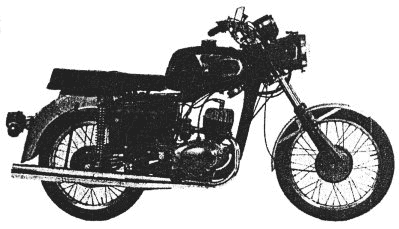

| Index
|
| Chassis |
Table 1 | Frame, Centre Stand |
Table 2 | Saddle Carrier, Swinging Fork |
Table 3 | Front Suspension |
Table 3a | Front Suspension |
Table 4 | Handlebar, Control Cables |
Table 5 | Rear Suspension |

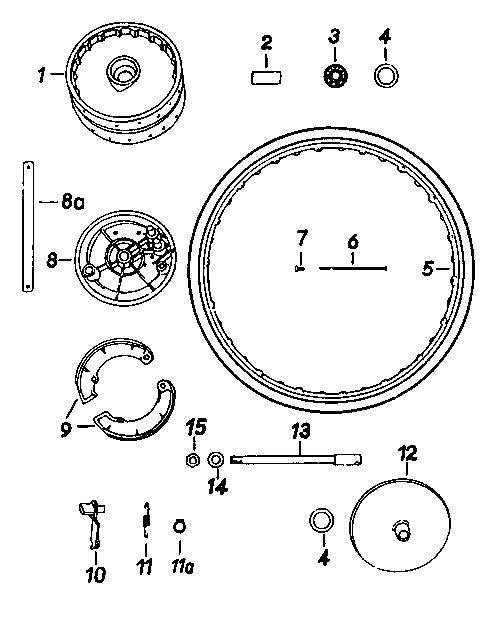

Table 6 | Front Wheel, Hub and Brake Drum, Brake |
Table 7 | Rear Wheel, Hub and Brake Drum, Brake |

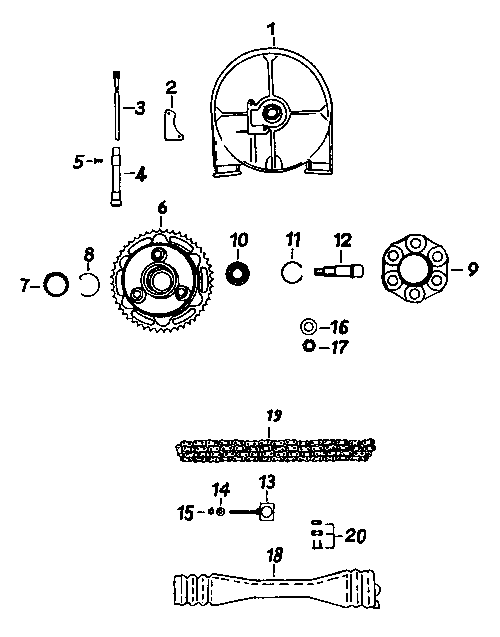

Table 8 | Rear Wheel Drive, Speedometer Drive |

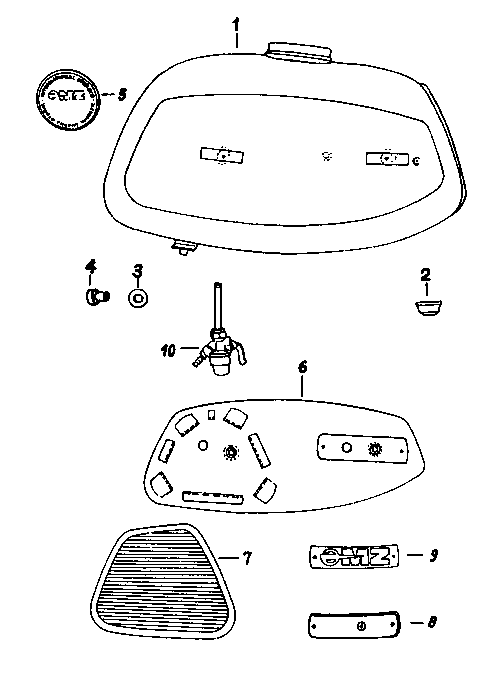

Table 9 | Petrol Tank, Petrol Tap |
Table 10 | Silencer |

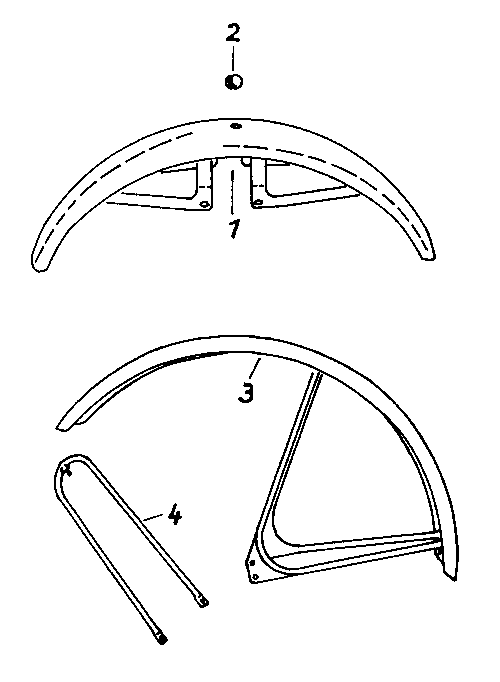

Table 11 | Front Mudguard |
Table 12 | Rear Mudguard |
Table 13 | Panels, Air Silencer, Air Filter |
Table 14 | Dual Seat,Accessories, Tools |
Table 15 | Special Accessories |
| Electrical Equipment |
Table 16 | Battery, Dynamo, Regulator Cut-Out |
Table 17 | Headlamp, Stop and Tail Lamp, Bulbs |

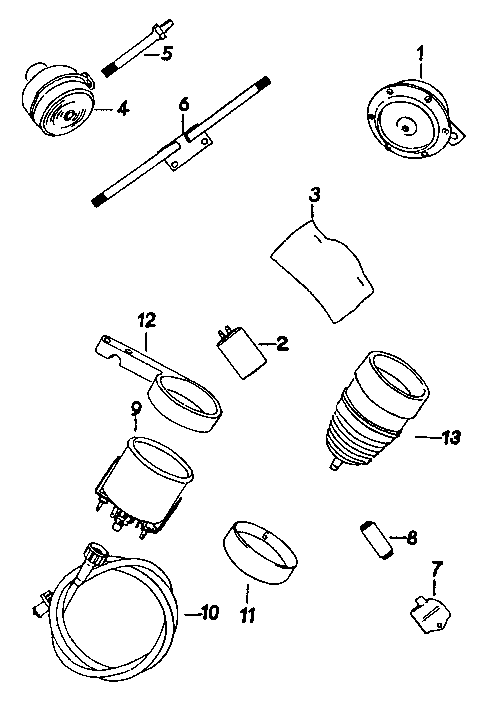

Table 18 | Horn, Trafficator Device, Speedometer, Revolution Counter |
| Engine |
Table 19 | Crankcase, Revolution Counter Drive |
Table 20 | Cylinder, Piston, Crankshaft |
Table 21 | Gearchange, Kickstarter |
Table 22 | Clutch |
Table 23 | Gears, Shafts |
Table 24 | Monoblock-Starting Device Carburettor | |
Ref.No. | Part.No. | Description | Quantity | Remarks | x |

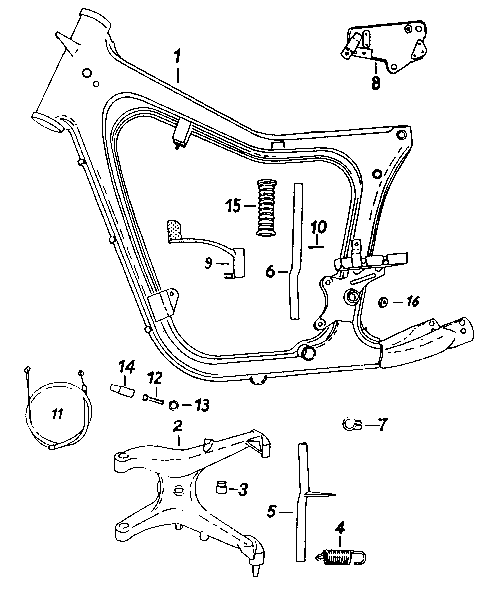

1 | 13-21.206 | Frame c/w model plate | 1 | | 4 |
2 | 13-21.178 | Centre stand | 1 | | 5 |
3 | 13-21.029 | Rebound stop for centre stand (rubber) | 1 | | |
4 | 13-21.177 | Return spring for centre stand | 1 | | 5 |
5 | 13-21.175 | Footrest tube, left-hand side | 1 | | 10 |
6 | 13-21.150 | Footrest tube, right-hand side | 1 | | 10 |
7 | 13-21.005 | Clip | 2 | | |
| 94-05.884 | Hexagon screw M 8x35 TGL 0-933-8.8 | 2 | | |
| 94-30.723 | Hexagon nut M 8 TGL 0-934-6 | 2 | | |
| 94-37.988 | Spring washer B 8 TGL 7403 | 2 | | |
8 | 13-21.159 | Support for regulator cut-out and ignition coil | 1 | | |
9 | 13-29.018 | Brake pedal complete | 1 | | 3 |
10 | 00-70.007 | Dowel pin 5x32 TGL 0-1473 | 1 | | |
11 | 13-29.022 | Rear brake cable | 1 | | 10 |
12 | 01-29.317 | Cable adjuster | 1 | | |
13 | 94-32.331 | Thumb nut M 8x1 TGL 39-285/6 | 1 | | |
14 | 13-29.006 | Dust cap for rear brake cable | 1 | rubber | |
15 | 22-21.272 | Pedal rubber A ETW-N 60503 | 2 | | 20 |
| 94-06.161 | Hexagon screw for front engine fastening CM 8x45 TGL 0-931-8.8 | 1 | | |
| 94-06.514 | Hexagon screw for rear engine fastening CM 8x65 TGL 0-931-8.8 | 2 | | |
| 94-38.386 | Spring plate 8 TGL 0-137 | 2 | | |
| 94-30.723 | Hexagon nut M 8 TGL 0-934-6 | 3 | | |
| 94-37.988 | Spring washer B 8 TGL 7403 | 3 | | |
16 | 13-30.287 | Distance washer for rear engine fastening | 4 | | |
Ref.No. | Part.No. | Description | Quantity | Remarks | x |

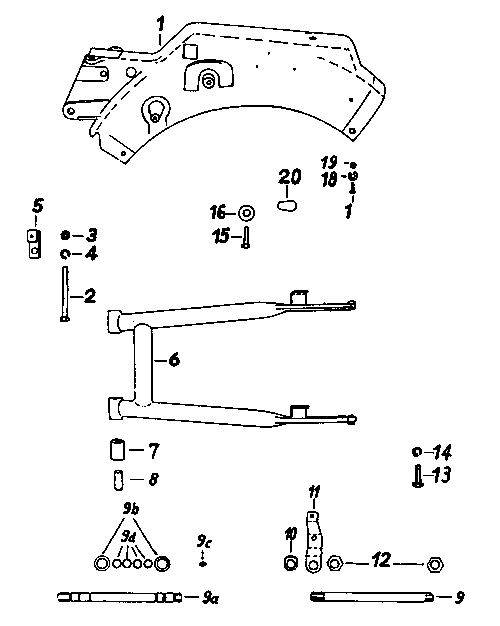

1 | 13-21.189/02 | Saddle carrier c/w clips for leads | 1 | | 2 |
2 | 94-08.926 | Hexagon screw CM 10x100 TGL 0-931-8.8 | 2 | | |
3 | 94-30.885 | Hexagon nut M 10 TGL 0-934-6 | 2 | | |
4 | 94-38.425 | Spring plate 10 TGL 0-137 | 2 | | |
5 | 13-21.112 | Panel fastening clamp, right-hand side | 1 | | |
6 | 13-21.222 | Swinging fork | 1 | | 5 |
7 | 13-21.225 | Rubber bush for swinging fork | 2 | | |
8 | 13-21.214 | Inner sleeve for swinging fork | 2 | | |
9 | 13-21.215 | Bolt for swinging fork | 1 | | |
10 | 00-70.800 | Adjusting ring for swinging fork MZS 689 | 1 | | |
11 | 13-21.226 | Holder for right panel | 1 | | |
12 | 94-31.724 | Hexagon nut M 18x1.5 TGL 0-936-6 | 2 | | |
13 | 94-07.531 | Hexagon screw M 10x35 for lower suspension unit fastening TGL 0-933-8.8 | 2 | | |
14 | 94-38.023 | Spring washer B 10 TGL 7403 | 2 | | |
| 94-36.263 | Washer 10.5 TGL 0-9021-St | 2 | | |
15 | 94-05.884 | Hexagon screw for upper suspension unit fastening M 8x35 TGL 0-933-8.8 | 2 | | |
16 | 00-18.131 | Washer | 2 | | |
17 | 94-03.962 | Hexagon screw M 6x16 TGL 0-933-8.8 | 2 | | |
18 | 94-37.867 | Spring washer B 6 TGL 7403 | 2 | | |
19 | 94-30.522 | Hexagon nut M6 TGL 0-934-6 | 2 | | |
| 94-36.062 | Washer 6.4 TGL 0-9021-St | 2 | | |
20 | 13-27.059 | Cover for saddle carrier (rubber) | 1 | | |
| | Spare parts for former swinging fork (sliding bearing) TS 125 till frame no. 7708060 TS 150 till frame no. 7850421 | | | |
9a | 13-21.118 | Bolt for swinging fork | 1 | | |
9b | 13-21.132 | Protektive cap for rear swinging fork | 2 | | |
9d | 13-21.148 | Sealing ring | 4 | | |
9c | 94-74.843 | Grease nipple A 6 TGL 0-71412 | 1 | | |
11a | 13-21.164 | Holder for right panel | 1 | | |
Ref.No. | Part.No. | Description | Quantity | Remarks | x |

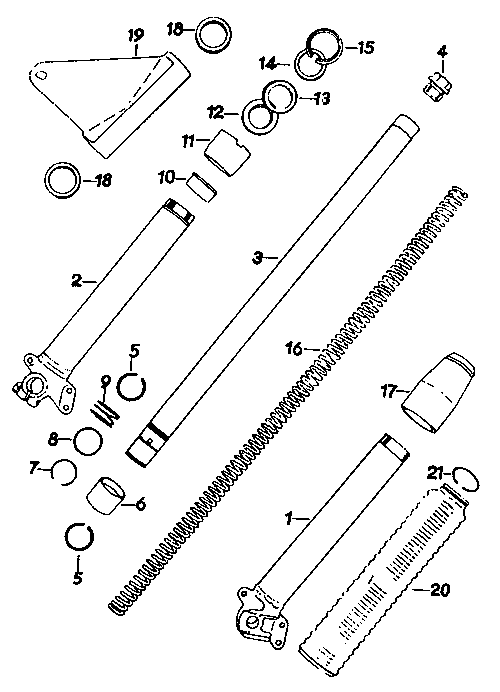

| 13-22.174 | Telescopic front fork complete (equipped with protective cap) | 1 | | |
| 13-22.178 | Telescopic front fork complete (equipped with telescopic gaiter) | 1 | | |

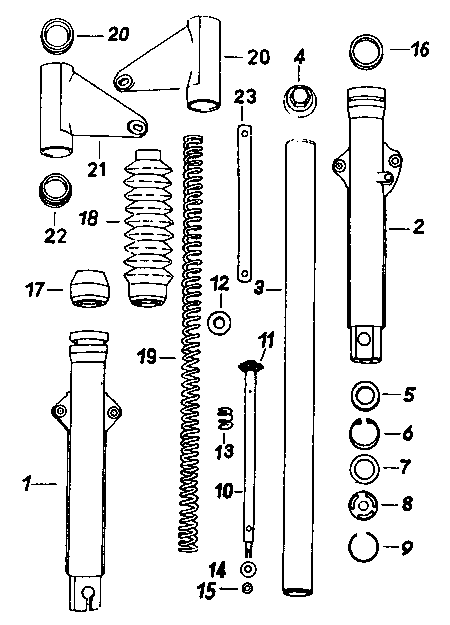

1 | 22-22.301 | Left stanchion | 1 | | 6 |
2 | 22-22.303 | Right stanchion | 1 | | 6 |
3 | 22-22.264 | Guide tube | 2 | | 2 |
4 | 22-22.294 | Cover nut | 2 | | 4 |
5 | 00-18.209 | Stop washer | 2 | | 4 |
6 | 94-40.026 | Locking ring 30 TGL 0-472 | 2 | | 4 |
7 | 00-18.193 | Valve washer | 2 | | 4 |
| 22-22.279 | Spring for valve washer | 2 | | |
8 | 22-22.278 | Damping washer | 2 | | 4 |
9 | 94-42.116 | Circlip 32x1,6 TGL 31666 | 2 | | 4 |
10 | 22-22.266 | Supporting tube complete | 2 | | 4 |
11 | 22-22.274 | Sealing ring | 2 | | 6 |
12 | 22-22.277 | Supporting plate for final stop | 2 | | 4 |
13 | 22-22.280 | Spring for finalstop | 2 | | 4 |
14 | 00-18.210 | Sealing washer | 2 | | |
| 96-72.354 | O-ring 6x2 TGL 6365 WS 2.057 | 2 | used till December 1977 | 12 |
| 94-36.013 | Sealing washer 6.4 TGL0-1255-St | 2 | used till December 1977 | |
15 | 94-38.345 | Spring plate 6 TGL 0-137 | 2 | | |
| 94-30.522 | Hexagon nut M 4 TGL 0-934-6 | 2 | | |
| 94-06.321 | Hexagon screw M 8x50 TGL 0-931-8.8 | 1 | | |
| 94-38.386 | Spring plate 8 TGL 0-137 | 1 | | |
| 94-30.723 | Hexagon nut M 8 TGL 0-934-6 | 1 | | |
16 | 96-60.375 | Oil seal D 35x47x7 TGL 16-454-St | 2 | | 12 |
17 | 22-22.290 | Protective cap | 2 | | 10 |
18 | 22-22.289 | Telescopic giater | 2 | | 10 |
| 22-22.298 | Clamping clip | 2 | | |
| 94-15.041 | Cylinder head screw BM 4x12 TGL 0-84-5.8 | 2 | | |
| 94-30.282 | Hexagon nut M 4 TGL 0-934-6 | 2 | | |
19 | 13-22.169 | Main spring | 2 | | 4 |
20 | 13-22.172 | Left headlamp holder | 1 | | 2 |
21 | 13-22.173 | Right headlamp holder | 1 | | 2 |
22 | 22-34.240 | Rubber ring for headlamp holder | 4 | | 10 |
| 94-06.965 | Hexagon screw M 10x16 TGL 0-933-8.8 for headlamp fastening | 2 | without trafficator device | |
| 94-38.425 | Spring washer 10 TGL 0-137 | 2 | | |
23 | 22-24.292/02 | Brake torque stay | 1 | | |
| 94-06.362 | Hexagon screw M 8x55 TGl 0-933-8.8 | 1 | | |
| 94-30.354 | Hexagon nut M 8 TGL 0-985-6 | 2 | | |
| 00-70.801 | Washer 8.4 TGL 0-125-St | 3 | | |
Ref.No. | Part.No. | Description | Quantity | Remarks | x |
| 13-22.151 | Telescopic front fork complete (equipped with protective cap) | 1 | | |
| 13-22.156 | Telescopic front fork complete (equipped with telescopic gaiter) | 1 | | |
1 | 22-22.108 | Left stanchion | 1 | | 6 |
2 | 22-22.107 | Right stanchion | 1 | | 6 |
| 94-03.722 | Hexagon screw M 8x30 TGL 0-933-8.8 | 1 | | |
| 94-37.988 | Spring washer B 8 TGL 7403 | 1 | | |
3 | 22-22.114 | Guide tube | 2 | | 12 |
4 | 19-22.073 | Cover nut | 2 | | |
5 | 94-42.382 | Circlip 32 TGL 16363 | 4 | | |
6 | 19-22.054 | Lower guide sleeve | 2 | | 12 |
7 | 94-42.116 | Circlip 32x1.6 TGL 31666 | 2 | | |
8 | 19-22.055 | Sealing ring | 2 | | 12 |
9 | 19-22.056 | Spring for sealing ring | 2 | | |
10 | 22-22.115 | Upper guide sleeve | 2 | | 12 |
11 | 22-22.117 | Threaded ring | 2 | | 6 |
12 | 96-60.053 | Oil seal D 32x45x7 TGL 16454 | 2 | | 12 |
13 | 19-22.069 | Supporting ring for oil seal | 2 | | |
14 | 19-22.060 | Felt washer | 2 | | 12 |
15 | 22-22.118 | Retaining ring for felt washer | 2 | | |
16 | 13-22.160 | Main spring | 2 | | 4 |
17 | 22-22.122 | Protective cap | 2 | | 10 |
18 | 22-34.013 | Rubber ring for headlamp holder 42 mm | 4 | | |
18a | 22-34.232 | Rubber ring for headlamp holder 40 mm | 4 | | |
19 | 13-22.143 | Left headlamp holder | 1 | | 3 |
| 13-22.144 | Right headlamp holder | 1 | | 3 |
20 | 22-22.121 | Telescopic gaiter | 2 | | 10 |
21 | 94-42.077 | Circlip 38x1.6 TGL 31666 | 2 | | |
Ref.No. | Part.No. | Description | Quantity | Remarks | x |
1 | 22-22.178 | Nut for steering tube | 1 | | |
2 | 13-22.133 | Cover cap | 1 | | |
3 | 22-22.255 | Top lug | 1 | | 3 |
| 22-22.098 | Top lug, not varnished | 1 | for guide tube 32 diam. | |
4 | 22-22.099 | Packing piece | 2 | | |
| 94-30.274 | Hexagon screw M 8x40 TGL 0-933-8.8 | 4 | | |
| 00-70.801 | Spring plate 8.4 TGL 0-125-St | 4 | | |
5 | 96-21.071 | Safety lock SP 53/70 6091-00.00.0 | 1 | | 5 |
| 94-61.440 | Spring A 0.7x12x5.5 f TGL 18395 | 1 | | |
6 | 22-22.139 | Cover plate | 1 | | |
| 94-58.092 | Button head bolt 2.5x10 TGL 0-1476-4.6 | 1 | | |
| 22-37.006 | Elongation for safety lock key | 1 | | |
7 | 93-92.798 | Ball baering for steering 6006 TGL 2981 | 2 | | 6 |
8 | 13-22.170/02 | Middle lug and stem | 1 | | 3 |
| 13-22.147/02 | Middle lug and stem | 1 | for guide tube 32 diam. | |
9 | 13-22.148 | Distance tube | 1 | | |
| 94-30.274 | Hexagon screw M 8x40 TGL 0-933-8.8 for middle lug and stem | 2 | | |
| 94-37.988 | Spring washer B 8 TGL 7403 | 2 | | |

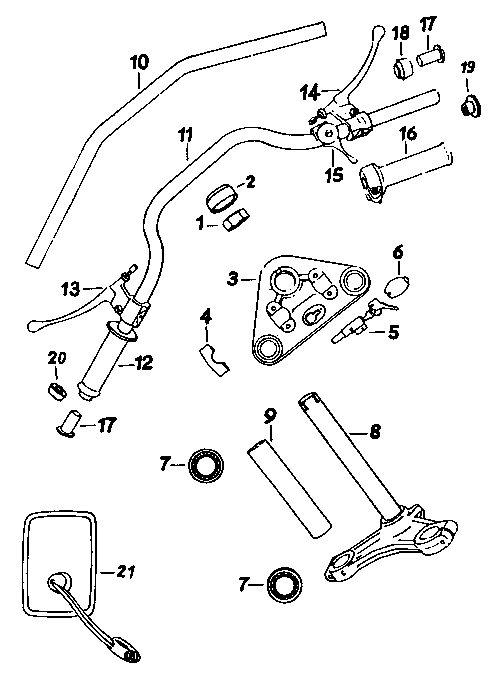

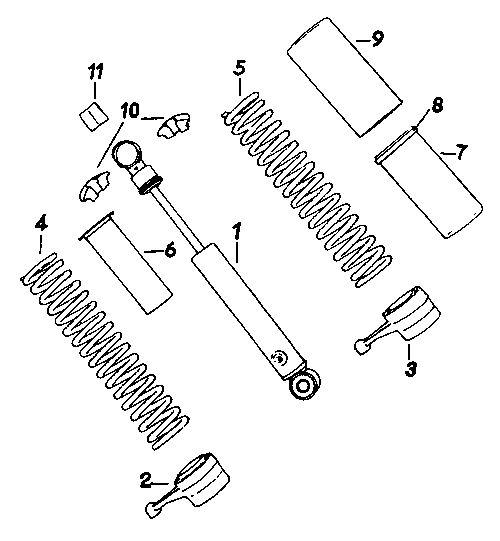

10 | 22-23.008 | Handlebar (flat shaped) | 1 | | 10 |
| | Control cables for flat shaped handlebar | | | |
| 93-71.920 | Front brake cable A 1105x937x150.5 | 1 | | 10 |
| 93-71.816 | Throttle cable D 946x841x95 | 1 | | 5 |
| 93-71.752 | Choke cable E/D 884x810x60 | 1 | | |
| 13-29.003 | Clutch cable A 1167x1022x127 | 1 | | 10 |
11 | 22-23.023 | Handlebar (swept-up design) | 1 | | 10 |
| | Control cables for swept-up handlebar | | | |
| 93-72.255 | Front brake cable A 1235x1067x150.5 | 1 | | 10 |
| 93-71.816 | Throttle cable D 946x841x95 | 1 | | 5 |
| 93-71.857 | Choke cable E/D 974x900x60 | 1 | | |
| 13-29.027 | Clutch cable A 1267x1122x127.5 | 1 | | 10 |
| 16-29.017 | Dust cap for cable | 2 | | |
| 13-29.007 | Dust cap for clutch cable | 1 | | 10 |
| 96-36.496 | Cable strap 100 ETW-N 60507 | 2 | delivered in metres | |
| 96-36.551 | Cable strap fastener ETW-N 60507 | 2 | | |
12 | 00-08.092 | Handlebar grip 302/1 | 1 | | 3 |
13 | 00-08.121 | Clutch lever compl. | 1 | | 3 |
14 | 00-08.120 | Front brake lever compl. | 1 | | 3 |
| 00-08.027 | Adjusting screw for cable | 2 | | 10 |
| 00-08.028 | Thumb nut | 2 | | 5 |
15 | 00-08.046 | Choke lever complete | 1 | | 3 |
16 | 00-08.078 | Twistgrip complete | 1 | | 3 |
17 | 13-30.100 | Tightening plug for handlebar | 2 | | 2 |
| 94-20.006 | Oval head screw BM 5x10 TGL 5687-4.8 | 1 | | 10 |
| 00-08.083 | Twist grip tube compl. | 1 | | |
| 00-08.079 | Body for twist grip compl. | 1 | | 3 |
| 00-08.074 | Rubber grip for twist grip | 1 | | 10 |
18 | 00-08.088 | Distance piece | 1 | | 2 |
19 | 13-30.365 | Guide ring for twist grip (right mirror fitted) | 1 | | 10 |
20 | 13-30.074 | Distance piece for handlebar, left-hand side | 1 | necessary if right mirror is fitted only | |
21 | 96-21.963 | Rear view mirror, left-hand side 31049.17141 | 1 | | 10 |
| 96-21.955 | Rear view mirror, right-hand side 31049.18140 | 1 | | |
Ref.No. | Part.No. | Description | Quantity | Remarks | x |
| 16-23.023 | Suspension units (in pairs) without dirt shields | 1 pair | | |
| 16-23.021 | Suspension units (in pairs) with dirt shields | 1 pair | | |
1 | 93-70.454 | Hydraulic damper A 22-100-88/8 MV | 2 | | 10 |
2 | 16-23.027 | Adjusting sleeve, left-hand side - without dirt shields | 1 | | |
| 16-23.026 | Adjusting sleeve, right-hand side - without dirt shields | 1 | | |
3 | 16-23.014 | Adjusting sleeve, left-hand side - with dirt shields | 1 | | |
| 16-23.013 | Adjusting sleeve, right-hand side - with dirt shields | 1 | | |
4 | 16-23.028 | Spring for suspension unit, chromium plated for suspension unit without dirt shields | 2 | | 4 |
5 | 05-23.081 | Spring for suspension unit (for suspension unit with dirt shields) | 2 | | 2 |
6 | 13-23.046 | Protective tube | 2 | | 12 |
7 | 16-23.010 | Inner dirt shield, chromium plated | 2 | | 10 |
8 | 05-23.112 | Guide ring, plastic | 2 | | 10 |
9 | 05-23.025 | Outer dirt shield, chromium plated | 2 | | 5 |
10 | 05-23.091 | Spring retainer | 4 | | 4 |
11 | 05-23.161 | Rubber ring for suspension unit on top | 2 | | 12 |
| 94-05.281 | Hexagon screw M 8x14 TGL 0-933-8.8 | 2 | | |
| 94-05.618 | Hexagon screw M 8x25 TGL 0-933-8.8 | 2 | for fastening of luggage carrier | |
| 00-18.131 | Washer | 2 | | |
| 94-07.531 | Hexagon screw M 10x35 TGL 0-933-8.8 | 2 | | |
| 94-38.023 | Spring washer B 10 TGL 7403 | 2 | | |
| 13.22-138 | Center Ring | 2 | former design | |
Ref.No. | Part.No. | Description | Quantity | Remarks | x |
| 22-24.256 | Front wheel | 1 | | |
1 | 22-24.259 | Hub and brake drum | 1 | | 2 |
2 | 05-24.031 | Distance tube | 1 | | |
3 | 93-94.228 | Ball bearing 6302 TGL 2981 | 2 | | 10 |
4 | 01-24.314 | Packing ring | 2 | | 10 |
5 | 13-24.037 | Wheel rim 1.60x18 TGL 12731-Lm | 1 | | 6 |
6 | 93-71.367 | Spoke A 148 TGL 39-491 | 36 | | 200 |
7 | 93-71.287 | Spoke nipple M 4 TGL 39-491 | 36 | | 200 |
| | Tyre 2.75x18 TGL 6498 | 11 | | |
| | Tube 2.75x18 TGL 20175 | 11 | | |
| | Tyre flap 25x18 TGL 104-6 | 11 | | |
8 | 22-24.274 | Brake anchor plate complete | 1 | | 5 |
| 22-24.275 | Brake anchor plate complete, high-polished | 1 | | |
| 22-24.276 | Brake anchor plate complete, polished | 1 | | |
| 22-24.277 | Brake anchor plate complete (brake light design) | 1 | | |
8a | 22-24.292/02 | Front brake stay | 1 | | |
| 94-06.241 | Hexagon screw M 8x45 TGL 0-933-8.8 | 1 | at brake anchor plate | |
| 94-30.723 | Hexagon nut M 8 TGL 0-934-6 | 1 | | |
| 00-70.801 | Washer 8.4 TGL 0-125-St | 4 | | |
| 94-06.362 | Hexagon screw M 8x55 TGL 0-933-8.8 | 1 | at stanchion self-locking | |
| 94-30.354 | Hexagon nut M 8 TGL 27689-8 | 2 | | |
8 | 05-24.254 | Brake anchor plate complete | 12 | | 5 |
| 05-24.264 | Brake anchor plate complete, high polished | 12 | | |
| 05-24.269 | Brake anchor plate complete, polished | 12 | | |
| 22-24.003 | Brake anchor plate complete (brake light design) | 12 | | |
9 | 05-24.261 | Brake shoe c/w lining | 2 | | 12 |
10 | 13-24.026 | Brake cam lever | 1 | | 5 |
| 13-25.070 | Brake cam lever c/w contact plate | 1 | | |
| 01-25.252 | Contact plate | 1 | | |
| 94-58.164 | Button head bolt 2.5x6 TGL 0-1477-4.6 | 2 | | |
| 01-25.377 | Contact screw | 1 | | |
| 13-25.031 | Insulator sleeve | 1 | | |
| 05-25.043 | Insulator disc | 1 | | |
| 13-30.204 | Contact plate for stop lamp switch | 1 | | |
| 94-30.362 | Hexagon nut M 5 TGL 0-934-6 | 2 | | |
| 94-37.826 | Spring washer B 5 TGL 7403 | 1 | | |
| 94-38.304 | Spring plate 5 TGL 0-137 | 1 | | |
11 | 13-24.019 | Shoe return spring | 1 | | 10 |
11a | 94-38.948 | Locking ring 12 TGL 0-471 | 2 | | 10 |
12 | 22-24.279 | Cover plate | 1 | | 5 |
| 22-24.280 | Cover plate, high polished | 1 | | 5 |
| 05-24.006 | Cover plate | 12 | | 5 |
| 05-24.263 | Cover plate, high polished | 12 | | |
13 | 22-24.285 | Wheel spindle | 1 | | |
| 22-24.025 | Wheel spindle | 12 | | |
14 | 00-18.156 | Washer | 1 | | |
15 | 94-31.363 | Hexagon nut M 14x1.5 TGL 0-934-6 | 1 | | |
| 22-24.010 | Balancing weight | if. requ. | | |
| | 1 not supplied by MZ | | | |
| | 2 for telescopic front forks equipped with guide sleeves | | | |

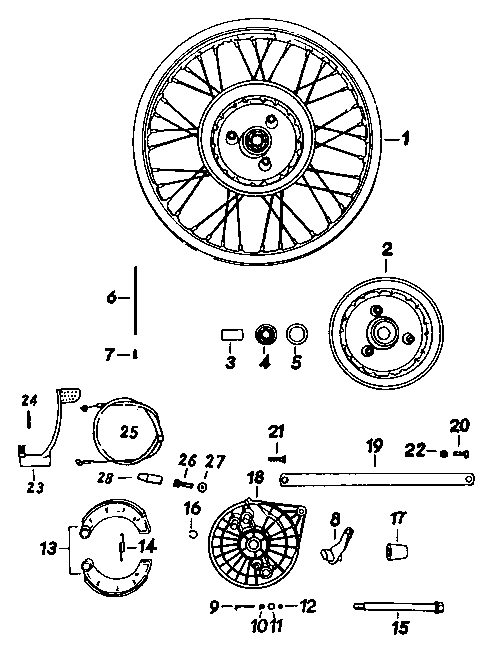

Ref.No. | Part.No. | Description | Quantity | Remarks | x |
1 | 13-25.002 | Rear Wheel | 1 | | |
2 | 13-25.005 | Hub and brake drum | 1 | | 1 |
3 | 01-24.017 | Distance tube | 1 | | |
4 | 93-94.228 | Ball baering 6302 TGL 2981 | 2 | | |
5 | 01-24.314 | Packing ring | 1 | | |
6 | 93-71.367 | Spoke A 148 TGL 39-491 | 36 | | 200 |
7 | 93-71.287 | Spoke nipple M 4 TGL 39-491 | 36 | | |
| 13-25.009 | Wheel rim 1.85 Bx18 TGL 12731-Lm | 1 | | 2 |
| | Tyre 3.00x18 TGL 6498 | 11 | | |
| | Tube 3.00x18 TGL 20175 | 11 | | |
| | Tyre flap 25x18 TGL 104-6 | 11 | | |
8 | 13-25.070 | Brake cam lever c/w contact plate | 1 | | 2 |
| 01-25.252 | Contact plate | 1 | | |
| 94-58.164 | Button head rivet 2.5x6 TGL 0-1477-4.6 | 2 | | |
9 | 01-25.377 | Contact screw | 1 | | 2 |
10 | 13-25.031 | Isulator sleeve for stop lamp switch | 1 | | 2 |
11 | 05-25.043 | Isulator disc for stop lamp switch | 1 | | 2 |
12 | 94-30.362 | Hexagon nut M 5 TGL 0-934-6 | 2 | | |
| 13-30.204 | Contact plate for stop lamp switch | 1 | | |
| 13-30.205 | Protective cap | 1 | | |
| B 1 | * Slip connector A 6.3-1 TGL 200-3854 | 1 | | |
13 | 01-24.315 | Brake shoe c/w lining | 2 | | 10 |
14 | 13-24.019 | Shoe return spring | 1 | | |
15 | 01-25.229 | Wheel spindle | 1 | | 1 |
| 00-18.156 | Washer for wheel spindle | 1 | | |
16 | 94-38.948 | Lock washer 12 TGL 0-471 | 2 | | |
17 | 22-25.006 | Distance sleeve | 1 | | |
18 | 13-25.067 | Brake anchor plate | 1 | | |
| 13-25.075 | Brake anchor plate, high polished | 1 | | |
| 13-25.086 | Brake anchor plate, polished | 1 | | |
19 | 13-25.084 | Brake torque stay | 1 | | |
20 | 94-05.618 | Hexagon screw M 8x25 TGL 0-933-8.8 | 1 | | |
21 | 94-05.722 | Hexagon screw M 8x30 TGL 0-933-8.8 | 1 | | |
22 | 94-30.723 | Hexagon nut M 8 TGL 0-934-6 | 3 | | |
23 | 13-29.018 | Brake pedal | 1 | | 3 |
24 | 00-70.007 | Dowel pin 5x32 TGL 0-1473 | 1 | | |
25 | 13-29.022 | Rear brake cable | 1 | | 10 |
26 | 01-29.317 | Cable adjusting screw | 1 | | |
27 | 94-32.331 | Thumb nut M 8x1 TGL 39-285/6 | 1 | | |
28 | 13-29.006 | Protective cap | 1 | rubber | |
| | 1 not supplied by MZ | | | |
Ref.No. | Part.No. | Description | Quantity | Remarks | x |
1 | 13-25.041 | Chain cover | 1 | | 5 |
| 13-25.072 | Distance spacer | 1 | | |
2 | 13-25.022 | Sealing plate | 1 | | |
3 | 13-25.038 | Speedometer gear complete | 1 | | 2 |
4 | 13-25.043 | Speedometer drive bush | 1 | | 2 |
5 | 94-19.053 | Countersunk screw BM 6x8 TGL 5683-4.8 | 1 | | |
6 | 13-25.071 | Wheel driver with sprocket | 1 | | 1 |
7 | 01-25.232 | Speedometer pinion | 1 | | |
8 | 01-25.315 | Circlip | 1 | | |
9 | 05-25.030 | Damping rubber | 1 | | 4 |
10 | 94-92.660 | Ball bearing 6004 TGL 2981 | 1 | | 5 |
11 | 00-03.019 | Circlip | 1 | | |
12 | 13-25.025 | Flange bolt | 1 | | |
13 | 05-25.122 | Chain adjuster | 2 | | 10 |
14 | 94-36.013 | Washer 6.4 TGL 0-125-St | 2 | | |
15 | 94-30.522 | Hexagon nut M 6 TGL 0-934-6 | 4 | | |
16 | 94-38.505 | Spring plate 14 TGL 0-137 | 1 | | |
17 | 94-31.402 | Hexagon nut M 14x1.5 TGL 0-936-6 | 1 | | |
18 | 13-28.014 | Chain guard | 2 | | 10 |
19 | 93-70.688 | Chain with connecting link 1x12.7x6.4x120 TGL 11796 | 1 | | 5 |
20 | 93-70.768 | Connecting link 1 D 12.7x6.4 TGL 11796 | 1 | | |
Ref.No. | Part.No. | Description | Quantity | Remarks | x |
1 | 13-27.175 | Petrol tank | 1 | | 3 |
2 | 13-27.181 | Front support for petrol tank | 2 | | |
3 | 13-27.183 | Rear support for petrol tank (rubber) | 2 | | |
4 | 22-27.110 | Rear support for petrol tank (rubber) | 2 | | |
| 13-27.182 | Distance sleeve | 2 | | |
5 | 00-13.073 | Filler cap | 1 | | |
| 22-27.108 | Filler cap with measuring cup | 1 | | |
| 13-27.094 | Lockable filler cap with measuring cup | 1 | | |
| 00-13.093 | Joint washer | 1 | | |
6 | 22-27.058 | Left decorative plate, chromium plated | 1 | | |
| 22-27.057 | Right decorative plate, chromium plated | 1 | | |
| 94-15.492 | Cylinder head screw BM 5x6 TGL 0-84-5.8 | 4 | | |
7 | 22-27.056 | Left knee grip | 1 | | |
| 22-27.055 | Right knee grip | 1 | | |
| 22-27.097 | Left knee grip (for standard design) | 1 | | |
| 22-27.098 | Right knee grip (for standard design) | 1 | | |
8 | 22-27.099 | Spacing for petrol tank badges | 2 | | |
9 | 22-27.040 | Petrol tank badge | 2 | | |
| 95-21.244 | Washer for badge FERS 323 3.2x9x1, rubber | 4 | | |
| 94-19.873 | Fillister head screw BM 3x6 TGL 0-85-5.8 | 4 | | |
| 94-04.328 | Hexagon screw for petrol tank fastening M 6x30 TGL 0-933-8.8 | 2 | | |
| 94-36.062 | Washer 6.4 TGL 0-9021-St | 2 | | |
| 94-37.867 | Spring washer B 6 TGL 7403 | 2 | | |
10 | 80-50.400 | Petrol tap (without nut M 16x1) | 1 | | 5 |
| 80-50.413 | Petrol pipe A 5x180 TGL 10347 | 1 | delivered in metres | |
| 80-50.402 | Petrol nipple | 1 | | 5 |
| 80-50.403 | Screen holder c/w screen | 1 | | 10 |
| 80-50.404 | Petrol tap lever | 1 | | |
| 80-50.405 | Petrol tap case | 1 | | 5 |
| 80-50.407 | Top screen for petrol tap 12x70x10 | 1 | | 10 |
| 80-50.408 | Connecting nut M 16x1 (right- and left-handed) | 1 | | 5 |
| 80-50.414 | Joint washer for petrol tap case | 1 | | 10 |
| 80-50.415 | Fibre washer 15x10.5x1 | 1 | | 10 |
| 80-50.431 | Spring plate for petrol tap lever | 1 | | |
| 80-50.432 | Membrane for petrol tap | 1 | | 10 |
Ref.No. | Part.No. | Description | Quantity | Remarks | x |

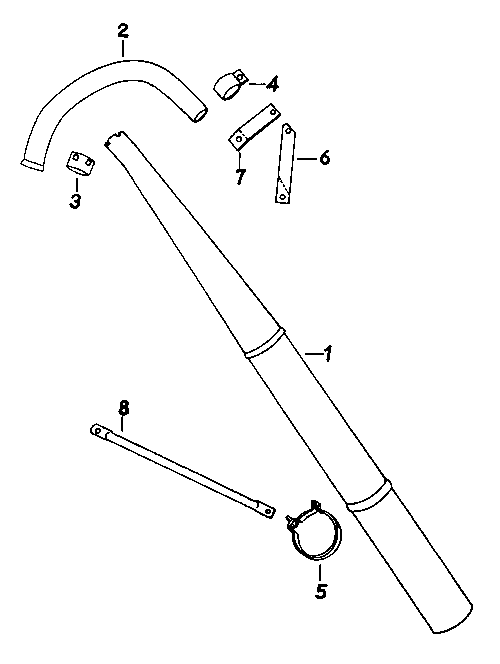

1 | 13-27.113 | Silencer | 1 | | 5 |
2 | 13-27.132 | Exhaust pipe | 1 | | 5 |
3 | 13-27.157 | Nut for exhaust pipe fastening | 1 | | 5 |
4 | 12-27.006 | Clip for silencer | 1 | | |
| 94-05.722 | Hexagon screw M 8x30 TGL 0-933-8.8 | 1 | | |
| 94-30.723 | Hexagon nut M 8 TGL 0-934-6 | 1 | | |
| 94-37.988 | Spring washer B 8 TGL 7403 | 1 | | |
5 | 01-27.307 | Clip for silencer fastening complete | 1 | | |
| 94-04.096 | Hexagon screw M 6x20 TGL 0-933-8.8 | 1 | | |
| 94-30.522 | Hexagon nut M 6 TGL 0-934-6 | 1 | | |
| 94-37.867 | Spring washer B 6 TGL 7403 | 1 | | |
| 94-36.013 | Washer 6.4 TGL 0-125-St | 1 | | |
6 | 13-27.156 | Rod for silencer fastening (at engine) | 1 | | |
7 | 13-27.135 | Front rod for silencer fastening | 1 | | |
| 94-05.618 | Hexagon screw M 8x25 TGL 0-933-8.8 | 2 | | |
| 94-37.988 | Spring washer B 8 TGL 7403 | 2 | | |
8 | 13-27.133 | Rear rod for silencer fastening | 1 | | |
| 94-05.618 | Hexagon screw M 8x25 TGL 0-933-8.8 | 1 | | |
| 94-30.723 | Hexagon nut M 8 TGL 0-934-6 | 2 | | |
| 94-37.988 | Spring washer B 8 TGL 7403 | 2 | | |
Ref.No. | Part.No. | Description | Quantity | Remarks | x |

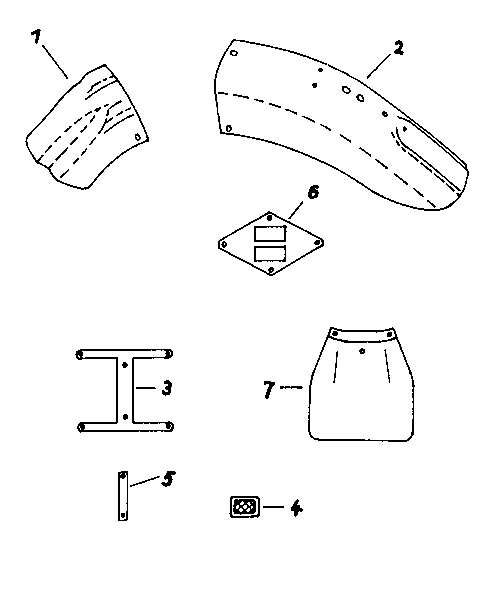

1 | 22-29.087/02 | Front mudguard complete | 1 | | 3 |
| 94-04.416 | Hexagon screw M 6x35 TGL 0-933-8.8 | 4 | | |
| 94-30.522 | Hexagon nut M 6 TGL 0-934-6 | 4 | | |
| 94-36.013 | Washer 6.4 TGL 0-125-St | 4 | | |
| 94-36.062 | Washer 6.4 TGL 0-9021-St | 4 | | |
| 94-37.867 | Spring washer B 6 TGL 7403 | 4 | | |
2 | 02-48.071 | Rubber plug | 1 | | |
3 | 13-28.134/02 | Front mudguard complete | 11 | | 3 |
4 | 13-28.130 | Stay for front mudguard, chromium plated | 11 | | 3 |
| 94-30.522 | Hexagon nut M 6 TGL 0-934-6 | 11 | | |
| 94-38.345 | Spring plate 6 TGL 0-137 | 11 | | |
| 94-03.962 | Hexagon screw M 6x16 TGL 0-933-8.8 | 61 | | |
| 94-30.522 | Hexagon nut M 6 TGL 0-934-6 | 61 | | |
| 94-37.867 | Spring washer B 6 TGL 7403 | 61 | | |
| | 1 for telescopic front forks equipped with guide sleeves | | | |
Ref.No. | Part.No. | Description | Quantity | Remarks | x |
1 | 13-28.163 | Front end of rear mudguard | 1 | | |
| 94-03.962 | Hexagon screw M 6x16 TGL 0-933-8.8 | 2 | | |
| 94-30.522 | Hexagon nut M 6 TGL 0-984-6 | 2 | | |
| 94-37.867 | Spring washer B 6 TGL 7403 | 2 | | |
| 94-36.062 | Washer 6.4 TGL 0-9021-St | 2 | | |
2 | 13-28.159/02 | Rear end of rear mudguard | 1 | | |
| 13-28.158 | Rubber support for rear end of rear mudguard (length 280 mm) | 1 | delivered in metres | |
| 94-03.962 | Hexagon screw M 6x16 TGL 0-933-8.8 | 2 | | |
| 94-30.522 | Hexagon nut M 6 TGL 0-934-6 | 2 | | |
| 94-37.867 | Spring washer B 6 TGL 7403 | 2 | | |
| 94-36.062 | Washer 6.4 TGL 0-9021-St | 2 | | |
| 94-05.400 | Hexagon screw M 8x18 TGL 0-933-8.8 | 1 | | |
| 94-30.723 | Hexagon nut M 8 TGL 0-934-6 | 1 | | |
| 94-38.386 | Spring plate 8 TGL 0-137 | 1 | | |
| 13-28.125/02 | Rear end of rear mudguard | 1 | GFR | |
| 13-28.147 | Model plate TS 150 | 1 | till fram no. 7857584 | |
| 13-28.146 | Model plate TS 125 | 1 | till fram no. 7710571 and GFR | |
| 94-14.885 | Cylinder head screw BM 4x4 TGL 0-84-4.8 | 1 | | |
| 94-37.787 | Spring washer B 4 TGL 7403 | 1 | | |
3 | 13-30.212 | Holder for number plate | 1 | GFR and Hungary | |
4 | 13-30.243 | Rear reflector | 1 | GFR | |
5 | 13-30.242 | Holder for rear reflector | 1 | GFR | |
| 96-22.144 | Number plate C TGL 15653 P | 1 | | |
6 | 13-30.335 | Strengthening plate for number plate | 1 | | |
| 94-15.603 | Cylinder head screw BM 5x12 TGL 0-84-5.8 | 1-4 | | |
| 94-30.362 | Hexagon nut M 5 TGL 0-934-6 | 2-4 | | |
| 94-37.826 | Spring washer B 5 TGL 7403 | 1-4 | | |
| 94-38.304 | Spring plate 5 TGL 0-137 | 1 | | |
| 94-15.644 | Cylinder head screw BM 5x16 TGL 0-84-5.8 | 1 | | |
| 94-35.945 | Spring plate 5.3 TGL 0-9021-St | 1 | | |
7 | 22-30.109 | Dirt shield (rubber - spezial accessory) | 1 | | |
| 94-03.962 | Hexagon screw M 6x16 TGL 0-933-8.8 (for dirt shield fastening) | 2 | | |
| 94-30.522 | Hexagon nut M 6 TGL 0-934-6 | 2 | | |
| 94-37.867 | Spring washer B 6 TGl 7403 | 2 | | |
| 94-36.062 | Washer 6.4 TGl 0-9021-St | 2 | | |
Ref.No. | Part.No. | Description | Quantity | Remarks | x |

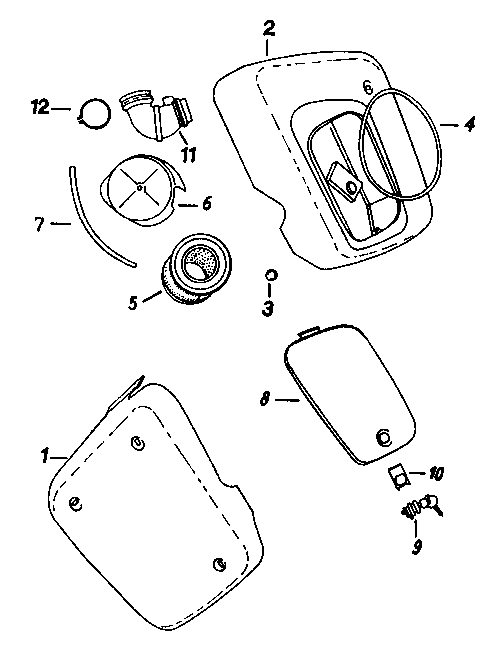

1 | 13-28.145 | Left panel | 1 | | 3 |
| 13-28.057 | Rubber grommel for ignition cable | 1 | | |
| 94-03.761 | Hexagon screw M 6x10 TGL 0-933-8.8 | 3 | | |
| 94-38.345 | Spring plate 6 TGL 0-137 | 3 | | |
2 | 13-28.143 | Right panel | 1 | | 3 |
| 94-03.761 | Hexagon screw M 6x10 TGL 0-933-8.8 | 3 | | |
| 94-38.345 | Spring plate 6 TGL 0-137 | 3 | | |
| 94-36.062 | Washer 6.4 TGL 0-9021-St | 1 | | |
3 | 02-48.071 | Rubber plug | 1 | | |
4 | 13-28.069 | Rubber ring for cover | 1 | | |
5 | 93-77.348 | Micro filter (try type) 100x102 TGL 39-474 | 1 | | 15 |
| 00-06.051 | Tightening screw for air filter | 1 | | |
6 | 13-28.094 | Cover for micro filter | 1 | | |
7 | 13-28.068 | Rubber pad for cover (length: 215 mm) | 1 | delivered in metres | |
| 94-30.522 | Hexagon nut M 6 TGL 0-934-6 | 2 | | |
| 94-36.013 | Washer 6.4 TGL 0-125-St | 1 | | |
8 | 13-28.144 | Cover for tool box | 1 | | |
9 | 96-21.096 | Safety lock for tool box cover | 1 | | 3 |
10 | 13-28.090 | Lock plate for safety lock | 1 | | |
11 | 13-28.072 | Angular rubber pipe for carburettor | 1 | | 4 |
12 | 13-28.061 | Clamping ring for angular rubber pipe fastening | 1 | | |
| 94-15.162 | Cylinder head screw AM 4x18 TGL 0-84-5.8 | 1 | | |
| 94-30.282 | Hexagon nut M 4 TGL 0-934-6 | 1 | | |
| 13-20.029 | Sticker 'TS 125' | 2 | | |
| 13-20.030 | Sticker 'TS 150' | 2 | | |
Ref.No. | Part.No. | Description | Quantity | Remarks | x |

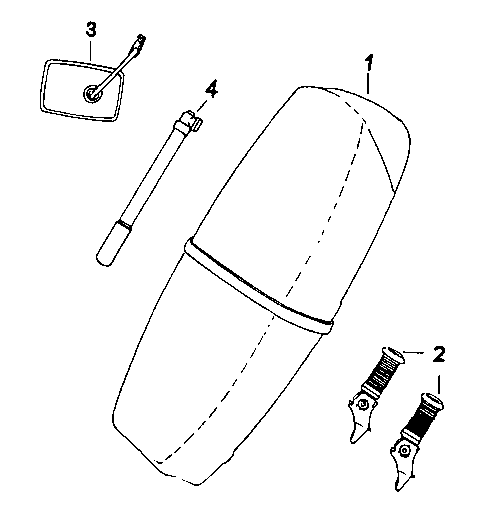

1 | 13-31.250 | Dual seat | 1 | | 2 |
| 94-05.378 | Hexagon screw M 8x16 TGl 0-933-8.8 | 4 | | |
| 94-37.988 | Spring washer B 8 TGL 7403 | 4 | | |
| 00-70.801 | Washer 8.4 TGL 0-125-St | 4 | | |
| 13-31.254 | Cover for dual seat | 1 | | |
| 13-31.394 | Safety strap for dual seat | 1 | | |
2 | 13-31.955 | Pillion footrest | 2 | | 10 |
| 94-06.965 | Hexagon screw M 10x16 TGL 0-933-8.8 | 2 | | |
| 94-38.425 | Spring plate 10 TGL 0-137 | 2 | | |
3 | 96-21.963 | Rear view mirror, left-hand side 31049.17141 | 1 | | |
| 96-21.955 | Rear view mirror, right-hand side 31049.18140 | 1 | | |
4 | 93-70.928 | Tyre inflator B 285 TGL 7640 | 1 | | |
| 13-30.305 | Tool set complete | 1 | | |
| 97-43.505 | Tool roll | 1 | | |
| 95-97.824 | Combination pliers 160 TGL 4494 | 11 | | |
| 96-03.865 | Screw driver A 0.4x40 TGL 48-73503-C 45 | 11 | | |
| 96-03.904 | Screw driver G TGL 48-73503-C 45 | 11 | | |
| 93-71.680 | Tyre lever A TGL 39-442 | 11 | | |
| 00-70.001 | Tyre lever B TGL 39-442 | 1 | | |
| 96-00.067 | Open spanner 8x10 TGL 48-73109 | 11 | | |
| 96-00.106 | Open spanner 9x11 TGL 48-73109 | 11 | | |
| 96-00.130 | Open spanner 12x13 TGL 48-73109 | 11 | | |
| 96-00.155 | Open spanner 13x17 TGL 48-73109 | 11 | | |
| 96-00.227 | Open spanner 19x22 TGL 48-73109 | 11 | | |
| 00-04.232 | Spark plug spanner | 1 | | |
| 00-04.094 | Box spanner (for cylinder head) | 1 | | |
| 00-04.049 | Bolt for box spanner | 1 | | |
| 93-70.768 | Connecting link 1 D 12.7x6.4 TGL 11796 | 1 | | |
| 95-19.555 | Feeler gauge 0.6 TGL 31508 | 1 | | |
| 95-19.571 | Feeler gauge 0.3 TGL 31508 | 1 | | |
| 96-42.404 | Tyre patch kit | 1 | | |
| | 1 are not available as single parts | | | |
Ref.No. | Part.No. | Description | Quantity | Remarks | x |

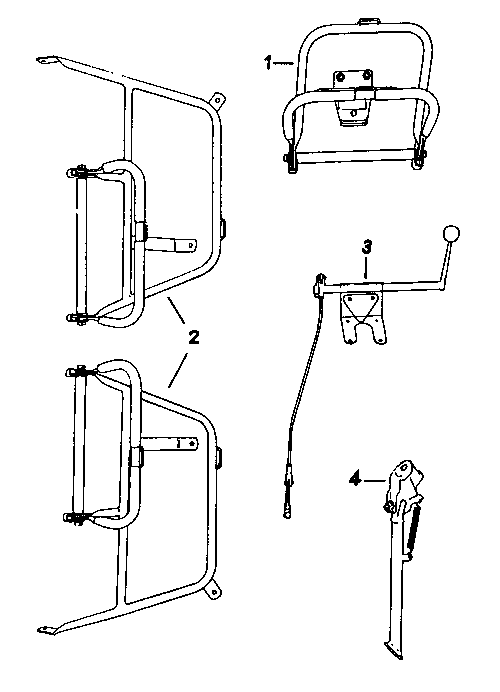

1 | 13-30.041 | Parcel grid c/w rubber support | 1 | | |
| 94-05.618 | Hexagon screw M 8x25 TGL 0-933-8.8 | 2 | | |
| 94-30.723 | Hexagon nut M 8 TGL 0-934-6 | 2 | | |
| 94-37.988 | Spring washer B 8 TGL 7403 | 2 | | |
| 00-70.801 | Washer 8.4 TGL 0-125-St | 2 | | |
| 94-04.248 | Hexagon screw M 6x25 TGL 0-933-8.8 | 1 | | |
2 | 13-30.237 | Side luggage carrier (right- and left-hand side) complete | 1 | delivered in pairs only | |
| 94-06.161 | Hexagon screw M 8x45 TGL 0-933-8.8 | 2 | | |
| 94-30.723 | Hexagon nut M 8 TGL 0-934-6 | 4 | | |
| 94-38.386 | Spring plate 8 TGL 0-137 | 4 | | |
| 94-05.458 | Hexagon screw M 8x20 TGL 0-933-8.8 | 2 | | |
| 94-30.723 | Hexagon nut M 8 TGL 0-934-6 | 2 | | |
| 00-70.801 | Washer 8.4 TGL 0-125-St | 2 | | |
3 | | Gearchange device complete (hand operated) | | after inquiry | |
4 | 16-30.132 | Side stand complete | 1 | | |
| 16-30.128 | Carrier with bearing stand | 1 | | |
| 16-30.183 | Stay for carrier | 1 | | |
| 02-21.105 | Bearing sleeve | 1 | | |
| 05-25.028 | Return spring | 1 | | |
| 13-30.358/02 | Leg shields complete | 1 | | |
| 13-30.351/02 | Left leg shield c/w rubber cover | 1 | | |
| 13-30.337 | Frame for left leg shield | 1 | | |
| 13-30.352/02 | Right leg shield c/w rubber cover | 1 | | |
| 13-30.336 | Frame for right leg shield | 1 | | |
| 13-30.362 | Fastening rod for leg shields | 1 | | |
| 05-25.043 | Insulating washer | 20 | | |
Ref.No. | Part.No. | Description | Quantity | Remarks | x |

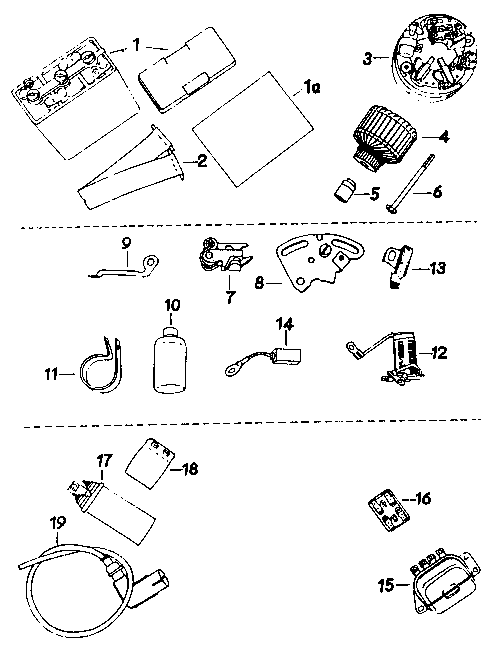

1 | 95-22.044 | * Battery 6 V 12 Ah TGL 25460 | 1 | | 3 |
1a | 13-30.177 | Battery support | 1 | | |
2 | 01-30.232 | Rubber strap for battery fastening | 1 | | |
3 | 1366511218710138 | * Stator with field coils 8016.4/21-2 | 1 | | 6 |
| 11218510013 | * Initial coil 8016.4/21-2111 | 1 | | 5 |
| 11218510021 | * Central coil (open) 8016.4/21-2112 | 2 | | 10 |
| 11218510101 | * Central coil (crossed) 8016.4/21-2113 | 2 | | 10 |
| 11218510048 | * End coil 8016.4/21-2114 | 1 | | 5 |
| 94-16.001 | Cylinder head screw for stator fastening CM 5x75 TGL 0-84-5.8 | 2 | | |
| 94-38.304 | Spring plate 5 TGL 137 | 2 | | |
4 | 1366511218810016 | * Armature 8016.4/21-1 | 1 | | 5 |
5 | 11218010473 | * Cam 8019.2 | 1 | | 5 |
6 | 11-49.012 | Hexagon screw for armature fastening M 7x90 | 1 | | |
| 94-37.988 | Spring washer B 8 | 1 | | |
7 | 1366531200932566 | * Contact breaker 1144 | 1 | | 10 |
8 | 31200601599 | * Special adjusting plate 8320.3/3-001 | 1 | | 2 |
9 | 11218101068 | * Lead for connecting of contact breaker and condenser 8016.5-20:1/2 | 1 | | 5 |
10 | 1377211106286461 | * Condenser 8016.1200:08 G 0.22 µF | 1 | | 2 |
11 | 1366590008100946 | * Condenser clip A FEKN 44 | 1 | | |
12 | 11218610065 | * Resistance coil 8016.4/21-2.1.4. | 1 | | 5 |
13 | 90008601679 | * Felt wiper 8329.1 | 1 | | 5 |
14 | | * Carbon brush (plus and minus) 8016.1-202 | 2 | | 20 |
| 11218510056 | * Holder for carbon brushes 8016.4/21-2.1.2.1 | 2 | | |
| 11218510064 | * Cover for carbon brush holder 8016.4/21-2.1.3.1 | 2 | | |
| 90008089978 | * Spring for carbon brush 5 FEKN 20 c 0.4x4.8x14.5 B | 2 | | |
| 11218010510 | * Contact plate 8016.4/21-2.1:1 | 1 | | |
| 90008100022 | * Contact plate 8016.4/21-2:4 | 1 | | |
| 90008100962 | * Contact plate 8016.4/21-2:3 | 1 | | |
| 13-30.147 | * Dynamo lead MK 4/23 | 1 | | 1 |
| 01-30.252 | Rubber sleeve for dynamo lead | 1 | | 3 |
15 | 1366521002900847 | * Regulator cut-out 6 V 60 W 8106.7/2 | 1 | | 5 |
| 94-16.083 | Cylinder head screw M 6x8 TGL 0-84-5.8 | 3 | | |
| 94-37.867 | Spring washer B 6 TGL 7403 | 3 | | |
| 94-36.013 | Washer 6.4 TGL 0-125-St | 1 | | |
16 | 1366563106901014 | * Fuse support 8811.13/2-1 | 1 | | |
| 63202931037 | * Fuse A 16 TGL 11135 | 2 | | 50 |
| 94-15.564 | Cylinder head screw M 5x10 TGL 0-84-5.8 | 2 | | |
17 | 1366531104930085 | * Ignition coil 8351.1/2 | 1 | | 3 |
18 | 31104030001 | * Clip for ignition coil fastening 8351.1/1-000:01 | 1 | | |
| 94-03.962 | Hexagon screw M 6x16 TGL 0-933-6 | 2 | | |
| 94-30.522 | Hexagon nut M 6 TGL 0-934-6 | 2 | | |
| 94-37.867 | Spring washer B 6 TGL 7403 | 2 | | |
19 | | * Ingition cable ZB TGL 4197 | 1 | delivered in metres | |
19a | | * Plug cover c/w suppressor AW 14 TGL 2003612 | 1 | | 10 |
19b | 1366590008089628 | * Rubber grommet for ignition cable | 1 | | |
| 96-36.496 | Cable strap ETW-N 60507 | | delivered in metres | 20 |
| 96-36.551 | Cable strap knob ETW-N 60507 | 7 | | |
| | All parts of this table signed by * are to be ordered from Fahrzeugelektrik Thalheim/Erzgeb. | | | |
Ref.No. | Part.No. | Description | Quantity | Remarks | x |

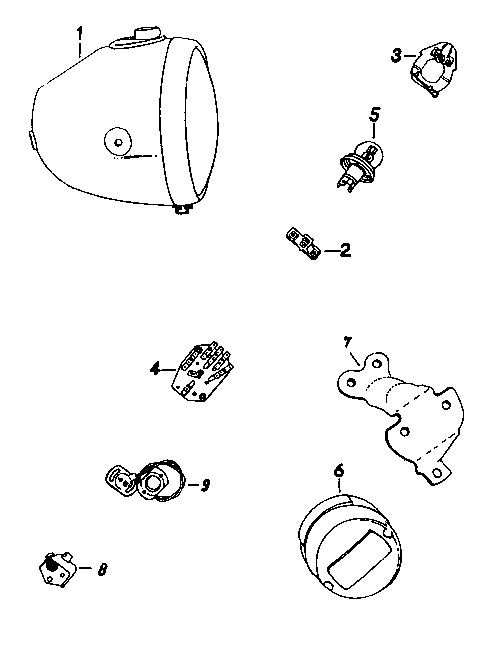

1 | 22-34.021 | Headlamp housing | 1 | | 3 |
| 22-34.263 | Headlamp housing without opening for speedometer | 1 | | |
| 1366552001810024 | * Light unit c/w rim 8706.14-2 | 1 | | |
| 52201910084 | * Light unit (assymetrical right-hand side) 8709.1/6 | 1 | | |
| 51201910105 | * Light unit (assymetrical left-hand side) 8709.1/9 | 1 | left-hand traffic | |
| 52001710023 | * Rim for headlamp 8706.14-21 | 1 | | |
| 51105308501 | * Fixing wire for rim A FERS 450 | 6 | | |
2 | 51201308747 | * Connecting piece for bulb A FERS | 1 | | 2 |
3 | 51105309221 | * Holder for bulbs A FERS 501 | 1 | | 2 |
4 | 61100930026 | * Ignition switch 8528.1/8 | 1 | | 5 |
| 61100930034 | * Cover for ignition switch 8626.1/6-1 | 1 | | 5 |
| 22-34.226 | Packing for ignition switch cover | 1 | | 5 |
| | * Fastening for ignition switch 8706.10-310 | 1 | | |
| 95-21.244 | Rubber plate FERS 323 (3.2x9x1) | 1 | | |
| 94-14.965 | Cylinder head screw BM 4x8 TGL 0-84-5.8 | 4 | | |
| 1366561100930085 | * Ignition key 8629.2 | 1 | | 5 |
5 | 1375153002492011 | * Headlamp bulb A 6 V 45/40 W P 45 t 41 | 1 | | 10 |
| 1375154005470605 | * Pilot bulb D 6 V 4 W BA 9 s | 1 | | 10 |
| 1375154005470541 | * Bulb D 6 V 1.2 W BA 7 s | 5 | | 10 |
| 1366500009300024 | * Rubber grommet for headlamp B FERS 124 | 2 | | |
| 1366522007080316 | * Wiring harness 13-30.292 | 1 | | 1 |
| 19-30.028 | Rubber grommet for speedometer cable | 1 | | 5 |
6 | 1366554808931141 | * Stop and tail lamp 8522.11 | 1 | | 5 |
| 1366545808931168 | * Lens for stop and tail lamp 8522.11-210:1 | 1 | | 5 |
| 1375154005470015 | * Bulb for tail light B 6 V 5 W BA 15 s | 1 | | |
| 1375154005472459 | * Bulb for stop light B 6 V 21 W BA 15 s | 1 | | |
| 94-03.962 | Hexagon screw M 6x16 TGL 0-933-8.8 | 2 | | |
| 94-38.345 | Spring plate 6 TGL 0-137 | 1 | | |
| 94-37.867 | Spring washer B 6 TGL 7403 | 1 | | |
| 13-30.286 | Intermediate for stop and tail lamp | 1 | former design | |
| 13-30.240 | * Stop and tail lamp 8522.7 | 1 | GFR | |
| 1375154005472512 | * Bulb E 6 V 18 W | 1 | GFR | |
| | * Bulb E 6 V 10 W | 1 | GFR | |
| 94-30.362 | Hexagon nut M 5 TGL 0-934-6 | 3 | GFR | |
| 94-37.826 | Spring washer B 5 TGL 7403 | 3 | GFR | |
7 | 13-30.285 | Holder for stop and tail lamp, chromium plated | 1 | | |
8 | 1366561901900513 | * Passing by switch c/w light signal push 8626.13 | 1 | | |
| 1365922007080957 | * Lead for passing by switch 13-30.170 | 1 | | |
| 19-30.035 | Cable grommet for passing by lead | 1 | | |
| 94-28.561 | Fillister head screw AM 4x30 TGL 0-85-4.8 | 1 | | |
| 94-30.282 | Hexagon nut M 4 TGL 0-934-6 | 1 | | |
| 94-37.787 | Spring washer B 4 TGL 7403 | 1 | | |
9 | 1366561207900222 | * Neutral gear indicator switch 8606.1/1 | 1 | | |
| | All parts of this table signed by * are to be ordered from Fahrzeugelektrik Thalheim/Erzgeb. | | | |
Ref.No. | Part.No. | Description | Quantity | Remarks | x |
1 | 1366542102900150 | * Horn 8411.12/1 | 1 | | 2 |
| 94-30.723 | Hexagon nut M 8 TGL 0-934-6 | 1 | | |
| 94-38.386 | Spring plate 8 TGL 0-137 | 1 | | |
2 | 1366541118901081 | * Trafficator unit 6 V 21 W 8581.19 | 1 | | 2 |
3 | 22-34.026 | Foam rubber bag | 1 | | 2 |
4 | 1366554103903431 | * Front trafficator 8580.23 | 2 | | 4 |
| 54103600190 | * Lens for front trafficator 8580.23-001/1 | 2 | | 4 |
| 54103903423 | * Rear trafficator 8580.23/1 | 2 | | 4 |
| 54103600203 | * Lens for rear trafficator 8580.23-002/1 | 2 | | 4 |
| 1375154005472459 | * Bulb 6 V 21 W BA 15 s | 4 | | 10 |
5 | 22-34.097 | Carrier for front trafficator | 2 | | 2 |
| 94-38.425 | Spring plate 10 TGL 0-137 | 3 | | |
| 94-06.965 | Hexagon screw M 10x16 TGL 0-933-8.8 for headlamp fastening | 2 | without trafficator device | |
6 | 22-34.229 | Carrier for rear trafficator | 1 | | 2 |
| 94-03.962 | Hexagon screw M 6x16 TGL 0-933-8.8 | 2 | | |
| 94-37.867 | Spring washer B 6 TGL 7403 | 1 | | |
| 94-38.345 | Spring plate 6 TGL 0-137 | 1 | | |
| 1365922007084464 | * Lead for rear trafficator 22-34.148 (earth) | 1 | | |
| | * Lead for rear trafficator 13-30.373 | 1 | | |
| 22-34.108 | Sealing washer for rear trafficator carrier, plastics | 2 | | |
7 | 1366541900900150 | * Trafficator switch 8606.7 | 1 | | |
| 94-20.561 | Fillister head screw AM 4x30 TGL 0-84-8.8 | 1 | | |
| 94-30.282 | Hexagon nut M 4 TGL 0-934-6 | 1 | | |
| 94-37.787 | Spring washer B 4 TGL 7403 | 1 | | |
| 19-30.060 | Cover plate (instead of trafficator switch) | 1 | without trafficator device | |
| | * Lead for trafficator switch 22-34.025 (trafficator switch/headlamp) | 1 | | |
8 | 1366563106900679 | * Protecting sleeve 8819.1/1 | 1 | | |
| 63202931029 | * Fuse A 8 TGL 11135 (8A) | 1 | | 50 |
9 | 95-48.295 | Speedometer complete 3.0220/10 | 1 | | 5 |
| 95-48.301 | Speedometer complete 3.0220/10 | 1 | miles indicator | |
| 95-48.270 | Speedometer complete 3.0220/10 | 1 | tropic-proof | |
| 95-48.246 | Speedometer complete with head light indicator lamp (Denmark, Hungary) | 1 | | |
| 1365922007081642 | * Lead for speedometer light 13-30.142 | 11 | | |
9 | 95-48.254 | Speedometer 3.0220/10 | 12 | | |
| 95-48.342 | Speedometer 3.0220/10 | 12 | miles indicator | |
| 95-48.318 | Speedometer c/w head light indicator lamp (Denmark, Hungary) | 12 | | |
| 95-48.238 | Revolution counter 3.0254/04 | 1 | | 5 |
| | * Lead for speedometer and revolution counter 22-34.265 | 1 | | |
10 | 13-30.230 | Speedometer cable | 1 | | 5 |
| 13-30.375 | Speedometer cable | 12 | | 5 |
| 13-30.376 | Cable for revolution counter A 2/H2-1000 TGL 16253 | 12 | | 5 |
11 | 19-30.061 | Distance sleeve for speedometer | 1 | | 3 |
| 22-34.113 | Sealing ring (rubber) | 1 | | 6 |
| 19.30-047 | Sealing ring (rubber) | 1 | used till 1974 | |
12 | 22-22.315 | Holder for revolution counter | 1 | | 2 |
| 22-22.316 | Holder for speedometer | 1 | | 2 |
| 94-12.440 | Cylinder head screw M 8x35 TGL 0-912-8.8 | 4 | | |
| 22-22.314 | Cover plug for cylinder head screw | 4 | | 20 |
13 | 22-34.251 | Protective cap | 2 | | |
| 00-03.039 | Circlip | 2 | | |
| | 1 for bikes without trafficator device 2 leads (one connects the control lights with ignition switch) | | | |
| | 2 for de luxe models (speedometer without fastening bracket, nut and rubber ring) | | | |
| | All parts of this table signed by * are to be ordered from Fahrzeugelektrik Thalheim/Erzgeb. | | | |
Ref.No. | Part.No. | Description | Quantity | Remarks | x |
| | | MM/21 | MM/3 | | |

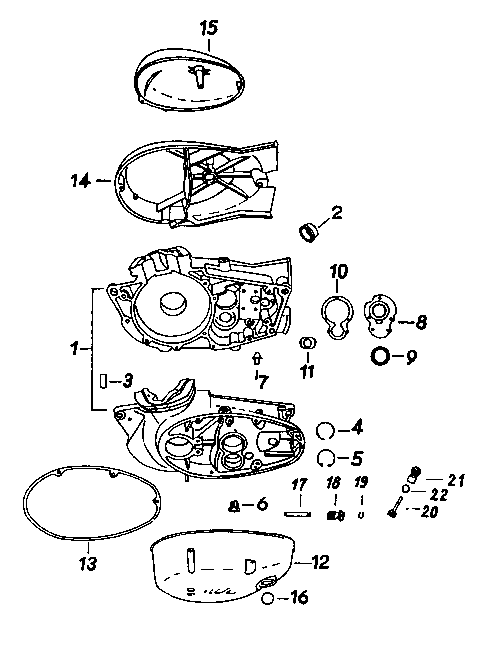

| 12-40.028 | Engine MM 125/3 complete | 1 | 1 | | |
| 14-40.021 | Engine MM 150/3 complete | 1 | 1 | | |
| 12-40.030 | Engine MM 125/3 c/w revolution counter drive | | 1 | | |
| 14-40.023 | Engine MM 150/3 c/w revolution counter drive | | 1 | | |
1 | 12-41.043 | Crankcase complete | | 1 | | 2 |
| 12-41.050 | Crankcase complete for revolution counterdrive | | 1 | | |
| 11-41.052 | Crankcase complete | 1 | | | |
| 13-30.287 | Distance washer for rear engine fastening | 4 | 4 | | |
2 | 11-41.017 | Layshaft bush | 1 | 1 | | |
| 94-51.527 | Dowel pin 6 m 6x20 TGL 0-7-5.8 | 2 | 2 | | |
3 | 05-41.002 | Fitting sleeve for crankcase | 2 | 2 | | |
4 | 00-03.014 | Circlip for mainshaft | 1 | 1 | | |
5 | 94-40.147 | Circlip for layshaft 32 TGL 0-472 | 1 | 1 | | |
| 12-41.042 | Separating washer (fitted to left-hand crankcase half) | | 1 | | |
6 | 12-41.020 | Oil drain plug with magnetic separator | 1 | 1 | | |
| 94-68.133 | Sealing washer A 18x24 TGL 0-7603-Al | 1 | 1 | | |
| 94.05.240 | Hexagon screw for oil draining from clutch case M 8x12 TGL 0-933-8.8 | 1 | 1 | | |
| 94-68.086 | Sealing washer A 8x14 TGL 0-7603-Al | 1 | 1 | | |
7 | 11-41.059 | Oil filler plug | 1 | 1 | | |
| 94-27.568 | Screw plug M 14x1.5 TGL 0-7604-6 | 1 | | | till 1975 |
8 | 11-41.026 | Sealing cap for lashaft | 1 | 1 | | |
9 | 96-59.051 | Oil seal D 25x35x7 TGL 16454 | 1 | 1 | | 10 |
| 94-18.286 | Countersunk screw BM 4x10 TGL 5683-5.8 | 5 | 5 | | |
10 | 11-41.027 | Gasket for sealing cap | 1 | 1 | | 50 |
| 94-16.284 | Cylinder head screw for crankcase BM 6x20 TGL 0-84-5.9 | 6 | 6 | | |
| 94-16.686 | Cylinder head screw for crankcase CM 6x50 TGL 0-84-5.9 | 9 | 10 | | |
| 94-16.805 | Cylinder head screw for crankcase CM 6x65 TGL 0-84-5.9 | 1 | | | |
| 94-68.078 | Sealing washer A 6x10 TGL 0-7603-Al | 1 | 1 | | |
| 94-57.202 | Dowel pin for dynamo locking 2.5x10 TGL 0-1473-5.8 | 1 | 1 | | |
11 | 11-41.018 | Locking plug for crankcase (right-hand side) | 1 | 1 | | |
12 | 12-41.015 | Clutch cover | 1 | 1 | | 3 |
| 12-41.017 | Clutch cover, high polished | 1 | 1 | | |
| 12-41.018 | Clutch cover, polished | 1 | 1 | | |
13 | 11-41.054 | Joint washer for clutch cover | 1 | 1 | | 50 |
| 94-16.846 | Cylinder head screw CM 6x70 TGL 0-84-5.8 | 2 | 2 | | |
| 94-16.887 | Cylinder head screw CM 6x85 TGL 0-84-5.8 | 2 | 2 | | |
| 94-68.078 | Sealing washer A 6x10 TGL 0-7603-Al | 4 | 4 | | |
| 94-16.122 | Cylinder head screw for oil control CM 6x10 TGL 0-84-5.8 | 1 | 1 | | |
| 94-68.078 | Sealing washer A 6x10 TGL 0-7603-Al | 1 | 1 | | |
14 | 11-41.048 | Dynamo cover | 1 | 1 | | 3 |
| 93-74.843 | Grease nipple A 6 TGL 0-71412 | 1 | 1 | | |
| 94-57.323 | Dowel pin 4x12 TGL 0-147-5.8 | 2 | 2 | | |
| 94-16.766 | Cylinder head screw CM 6x60 TGL 0-84-5.8 | 1 | 1 | | |
| 01-41.004 | Fitting sleeve | 1 | 1 | | |
15 | 11-41.046 | Cap for dynamo cover | 1 | 1 | | |
| 11-41.051 | Cap for dynamo cover, high polished | 1 | 1 | | |
| 11-41.056 | Cap for dynamo cover, polished | 1 | 1 | | |
16 | 96-72.957 | Sealing ring for kickstarter axle 20x2 TGL 6365 WS 2.057 | 1 | 1 | | |
17 | 12-41.048 | Bearing bolt for double gear | | 1 | | |
18 | 12-41.049 | Double gear for revolution counter drive | | 1 | | |
19 | 94-38.747 | Circlip 9 TGL 0-471 | | 1 | | |
20 | 29-48.105 | Drive shaft complete for revolution counter | | 1 | | |
21 | 12-41.053 | Drive bush | | 1 | | |
22 | 96-72.602 | O-ring 14x2 TGL 6365 WS 2.057 | | 1 | | |
| 94-03.384 | Hexagon screw M 5x12 TGL 0-933-8.8 | | 1 | | |
| 94-37.682 | Locking plate A 5.3 TGL 0-463-St | | 1 | | |
| | 1 MM 125/2 till engine no. 7372908 MM 150/2 till engine no. 6587572 | | | | |
Ref.No. | Part.No. | Description | Quantity | Remarks | x |
| | | MM/21 | MM/3 | | |

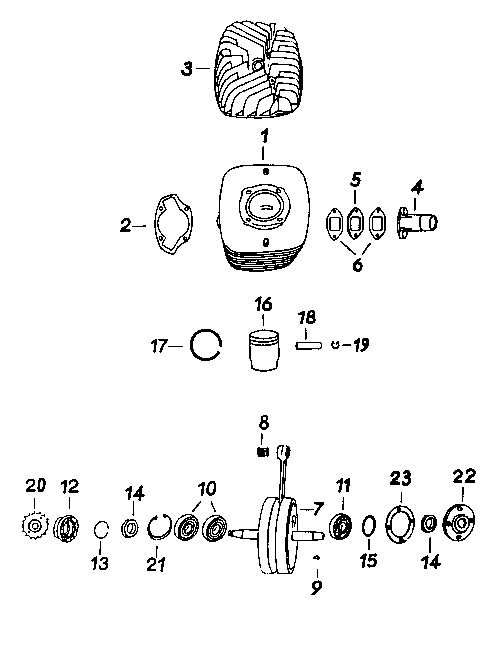

1 | 12-42.022 | Cylinder 52 diam. | 1 | 1 | | 10 |
| 14-42.026 | Cylinder 56 diam. | 1 | 1 | | 10 |
| 12-41.052 | Stud bolt for cylinder fastening M 6x125 | 4 | 4 | | 10 |
| 94-30.483 | Hexagon nut M 6 TGL 0-934-10 | 4 | 4 | | |
| 00-70.009 | Washer 6.4 TGL 0-125-St | 4 | 4 | | |
2 | 11-42.005 | Cylinder base gasket | 1 | 1 | | 50 |
3 | 12-42.023 | Cylinder head c/w silencer strip e=10 | 1 | 1 | | 2 |
| 14-42.027 | Cylinder head c/w silencer strip e=10 | 1 | 1 | | 2 |
| 14-42.029 | Cylinder head c/w silencer strip e=10 | 1 | 1 | Denmark | |
4 | 12-42.021 | Intake socket | 1 | 1 | | |
| 14-42.025 | Intake socket | 1 | 1 | | |
5 | 11-42.009 | Insulating flange for intake socket | 1 | 1 | | |
6 | 11-42.010 | Gasket for intake socket | 2 | 2 | | 20 |
| 94-04.248 | Hexagon screw M 6x25 TGL 0-933-8.8 | 2 | 2 | | |
| 94-38.345 | Spring plate 6 TGL 0-137 | 2 | 2 | | |
| 96-78.351 | Silencer strip 2x30 TGL 21829, length: 95 mm | 2 | 2 | delivered in metres | |
| 80-50.411 | Silencer tube 8x2 -0-65 TGL 13880, length: 95 mm | 2 | 2 | delivered in metres | |
7 | 12-43.038 | Crankshaft c/w needle bearing | | 1 | | 10 |
| 14-43.010 | Crankshaft complete | 1 | | | 10 |
8 | 94-02.414 | Needle bearing K 15x19x20 FKI | | 1 | | |
| 11-35.015 | Small end bush | 1 | | | |
9 | 94-44.062 | Key 4x5 TGL 9499 | 2 | 1 | | |
10 | 93-93.397 | Ball bearing for crankshaft 6204 TNWC 4 f TGL 2981 20x47x14 | | 2 | | 20 |
11 | 93-94.357 | Ball bearing for crankshaft 6304 J C 4 f TGL 2981 20x52x15 | | 1 | | 10 |
| 93-94.260 | Ball bearing for crankshaft 6303 C 4 F TGL 2981 17x47x14 | 3 | | | 20 |
12 | 12-41.037 | Holder for oil seal | | 1 | | |
13 | 94-42.124 | Circlip 30x2 TGL 31666 | | 1 | | |
14 | 96-58.565 | Oil seal D 20x30x7 TGL 16454 WS 1.028 | | 2 | | 10 |
| 96-58.934 | Oil seal D 22x47x7 TGL 16454 WS 1.028 | 2 | | | |
15 | 00-18.201 till 00-18.203 | Distance spacer for crankshaft | if requ. | | | |
| 00-18.168 till 00-18.171 | Distance spacer for crankshaft | if requ. | | | |
16 | 93-78.228 | Piston complete 52.3 52 diam. | 1 | 1 | | 10 |
| 80-20.112 | Piston complete 52.3 52.50 diam. | 1 | 1 | | |
| 80-20.114 | Piston complete 52.3 53 diam. | 1 | 1 | | |
| 80-20.116 | Piston complete 52.3 53.50 diam. | 1 | 1 | | |
| 80-20.118 | Piston complete 52.3 54 diam. | 1 | 1 | | |
17 | 80-20.501 | Piston ring Z (two-stroke) 52x2 | 2 | 2 | | |
| 80-20.507 | Piston ring Z 52.50x2 | 2 | 2 | | |
| 80-20.513 | Piston ring Z 53x2 | 2 | 2 | | |
| 80-20.517 | Piston ring Z 53.50x2 | 2 | 2 | | |
| 80-20.521 | Piston ring Z 54x2 | 2 | 2 | | |
18 | 80-20.706 | Gudgeon pin A 15x10x43 TGL 39-755 | 1 | 1 | | 3 |
16 | 93-78.180 | Piston complete 56.1 56 diam. | 1 | 1 | | 10 |
| 80-20.172 | Piston complete 56.1 56.50 diam. | 1 | 1 | | |
| 80-20.174 | Piston complete 56.1 57 diam. | 1 | 1 | | |
| 80-20.176 | Piston complete 56.1 57.50 diam. | 1 | 1 | | |
| 80-20.178 | Piston complete 56.1 58 diam. | 1 | 1 | | |
17 | 80-20.524 | Piston ring Z 56x2 | 2 | 2 | | |
| 80-20.530 | Piston ring Z 56.50x2 | 2 | 2 | | |
| 80-20.536 | Piston ring Z 57x2 | 2 | 2 | | |
| 80-20.540 | Piston ring Z 57.50x2 | 2 | 2 | | |
| 80-20.544 | Piston ring Z 58x2 | 2 | 2 | | |
18 | 80-20.712 | Gudgeon pin A 15x10x47 TGL 39-755 | 1 | 1 | | |
19 | 80-04.006 | Circlip 15 TGL 0-73-123 | 2 | 2 | | |
20 | 12-47.010 | Sprocket at crankshaft | | 12 | | |
| 12-47.004 | Sprocket at crankshaft | 13 | | | |
| 12-47.003 | Sprocket at crankshaft | 1 | | simplex chain | |
| 94-07.291 | Hexagon screw M 10x25 TGL 0-933-10.9 | 1 | | | |
| 00-18.207 | Washer | 1 | | | |
| 94-38.425 | Spring plate | 1 | | | |
| 94-31.201 | Hexagon nut M 12x1.5 TGL 0-936-5 | 1 | | | |
| 94-38.466 | Spring plate 12 TGL 0-137 | 1 | | | |
21 | 94-40.942 | Circlip for crankshaft 47 TGL 0-472 | 1 | 1 | | |
22 | 12-41.040 | Sealing cap | | 1 | | |
| 11-41.047 | Sealing cap | 1 | | | |
23 | 12-41.041 | Gasket for sealing cap | | 1 | | 50 |
| 11-41.058 | Gasket for sealing cap | 1 | | | 50 |
| 94-18.768 | Hexagon screw BM 5x16 TGL 5683-5.8 | 4 | 4 | | |
| | 1 MM 125/2 till engine no. 7372908 MM 150/2 till engine no. 6587572 | | | | |
| | 2 MM 125/3 from engine no. 7372909 MM 150/3 from engine no. 6587573 | | | | |
| | 3 MM 125/2 from engine no. 7324450 MM 150/2 from engine no. 6444237 | | | | |

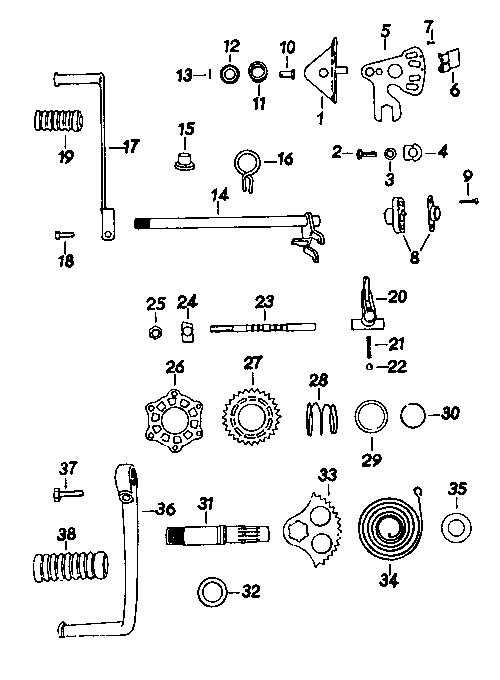

Ref.No. | Part.No. | Description | Quantity | Remarks | x |
| | | MM/21 | MM/3 | | |
1 | 11-45.006 | Retaining plate for gearchange quadrant | 1 | 1 | | |
2 | 94-03.962 | Hexagon screw M 6x16 TGL 0-933-8.8 | 2 | 2 | | |
3 | 94-36.013 | Washer 6.4 TGL 0-125-St | 2 | 2 | | |
4 | 01-45.009 | Locking plate | 2 | 2 | | |
5 | 11-45.002 | Gearchange quadrant | 1 | 1 | | |
6 | | Contact plate 8606.1/1-1 (4) | 12 | 12 | | |
7 | 94-45.520 | Button head rivet 2.5x8 TGL 0-660-Mu 8 | 2 | 2 | | |
8 | 1366561207900222 | Neural gear indicator complete 8606.1/1 | 12 | 12 | | |
9 | 94-15.121 | Cylinder head screw AM 4x16 TGL 0-84-5.8 | 2 | 2 | | |
| 96-75.197 | Rubber plug for neutral gear indicator lead | 1 | 1 | | |
10 | 11-45.007 | Bolt for gearchange quadrant | 1 | 1 | | |
11 | 01-45.007 | Spring | 1 | 1 | | |
12 | 01-45.006 | Retainer for spring | 1 | 1 | | |
13 | 01-45.008 | Locking pin for retainer | 1 | 1 | | |
14 | 11-45.032 | Gearchange shaft with gearchange body | 1 | 1 | | 3 |
15 | 11-45.034 | Distance ring | 1 | 1 | | |
16 | 01-45.015 | Return spring | 1 | 1 | | 3 |
17 | 12-45.003 | Gearchange pedal | 1 | 1 | | 3 |
18 | 94-04.248 | Hexagon screw M 6x25 TGL 0-933-8.8 | 1 | 1 | | |
| 94-38.345 | Spring plate 6 TGL 0-137 | 1 | 1 | | |
| 94-30.522 | Hexagon nut M 6 TGL 0-934-6 | 1 | 1 | | |
19 | 05-47.050 | Pedal rubber | 1 | 1 | | 20 |
20 | 11-45.013 | Gearchange dog | 1 | 1 | | 3 |
21 | 94-61.578 | Spring for gearchange dog C 1.2x6x11.5 TGL 18395 | 1 | 1 | | |
22 | 94-00.902 | Steel ball 6.35 IV TGL 15515 | 1 | 1 | | |
23 | 11-45.046 | Arresting gearchange shaft | 1 | 1 | | |
24 | 11-45.017 | Locking plate | 1 | 1 | | |
25 | 00-06.048 | Hexagon nut M 8 | 1 | 1 | | |
26 | 01-44.009 | Kickstarter ratchet | 1 | 1 | | |
27 | 11-44.006 | Kickstarter pinion | 1 | 1 | | 5 |
28 | 01-44.011 | Spring for kickstarter pinion | 1 | 1 | | |
29 | 01-44.012 | Retainer for spring | 1 | 1 | | |
30 | 00-03.016 | Circlip for retainer | 1 | 1 | | |
31 | 11-44.011 | Kickstarter axle | 1 | 1 | | |
32 | 00-01.073 | Plain washer for kickstarter axle | 1 | 1 | | |
33 | 11-44.013 | Kickstarter quadrant | 1 | 1 | | 5 |
34 | 01-44.003 | Kickstarter spring | 1 | 1 | | 3 |
35 | 11-44.014 | Check plate | 1 | 1 | | |
36 | 12-44.005 | Kickstarter pedal | 1 | 1 | | 2 |
37 | 94-05.618 | Hexagon screw M 8x25 TGL 0-933-8.8 | 1 | 1 | | |
38 | 05-46.096 | Pedal rubber | 1 | 1 | | 20 |
| | 1 MM 125/2 till engine no. 7372908 MM 150/2 till engine no. 6587572 | | | | |
| | 2 supplied by Fahrzeugelektrik Thalheim/Erzgeb. | | | | |

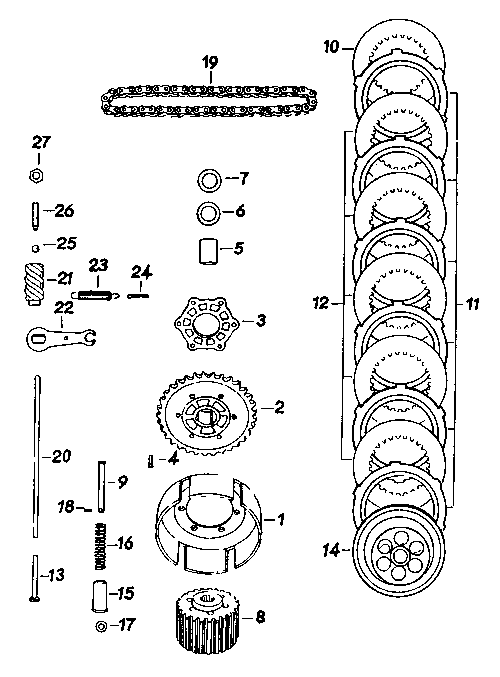

Ref.No. | Part.No. | Description | Quantity | Remarks | x |
| | | MM/21 | MM/3 | | |
1 | 11-46.001 | Clutch drum | 1 | 1 | | 2 |
2 | 11-46.029 | Clutch sprocket | 1 | 1 | | |
| 11-46.016 | Clutch sprocket | 12 | | | |
3 | 01-44.009 | Kickstarter ratchet | 1 | 1 | | 5 |
4 | 94-47.137 | Countersunk rivet 4x18 TGL 0-661-Mu 8 | 6 | 6 | | |
| 94-47.040 | Countersunk rivet 4x16 TGL 0-661-Mu 8 | 62 | | | |
5 | 01-46.001 | Pinion sleeve for clutch sprocket | 1 | 1 | | |
6 | 00-01.050 | Check plate | 1 | 1 | | |
7 | 00-18.164 till 00-18.167 | Distance spacer 0.1; 0.2; 0.3; 0.5 | if requ. | if requ. | | |
8 | 12-46.003 | Clutch centre | 1 | 1 | | 5 |
| 12-46.002 | Clutch centre | 12 | | | |
9 | 11-46.009 | Bolt for spring | 6 | 6 | | |
10 | 01-46.007 | Retainer plate | 1 | 1 | | 2 |
11 | 96-81.041 | Driving plate (bonded) 6 TGL 39-716 | 6 | 6 | | 24 |
12 | 11-46.021 | Driven plate | 5 | 5 | | 20 |
13 | 01-46.006 | Pressure bolt | 1 | 1 | | 3 |
14 | 01-46.062 | Pressure plate complete | 1 | 1 | | 2 |
15 | 01-46.063 | Spring cap | 6 | 6 | | |
16 | 01-46.064 | Spring | 6 | 6 | | 24 |
17 | 11-46.010 | Supporting nipple | 6 | 6 | | 10 |
18 | 11-46.011 | Bolt for spring | 6 | 6 | | 20 |
19 | 11-47.051 | Endless primary chain 3/8 inch x 3/16 inch (duplex) | 1 | 1 | | 5 |
| 11-47.022 | Endless primary chain 062 C-48 TGL 39-764 | 12 | | | |
20 | 11-46.003 | Pressure rod for clutch | 1 | 1 | | 3 |
21 | 01-46.066 | Pressure spindle | 1 | 1 | | |
22 | 11-46.013 | Lever for pressure spindle | 1 | 1 | | |
23 | 11-46.020 | Spring for clutch lever | 1 | 1 | | |
24 | 94-43.141 | Splint pin 3.2x16 TGL 0-94-St | 1 | 1 | | |
25 | 94-00.902 | Steel ball for pressure rod 6.35 IV TGL 15515 | 1 | 1 | | |
26 | 00-70.006 | Adjusting bolt M 8x30 TGL 0-417 M 8-6 g | 1 | 1 | | |
27 | 94-30.723 | Hexagon nut M 8 TGL 0-934-6 | 1 | 1 | | |
| | 1 MM 125/2 till engine no. 7372908 MM 150/2 till engine no. 6587572 | | | | |
| | 1 MM 125/2 till engine no. 7324449 MM 150/2 till engine no. 6444236 | | | | |
Ref.No. | Part.No. | Description | Quantity | Remarks | x |
| | | MM/21 | MM/3 | | |
1 | 11-47.048 | Mainshaft | 1 | 1 | | 3 |
2 | 93-93.147 | Ball bearing 6202 TN C 3 TGL 2981 15x35x11 | 1 | 1 | | 10 |
3 | 11-47.007 | Sliding gear (2nd and 4th gear) | 1 | 1 | | 3 |
4 | 11-47.010 | Mainshaft high gear with bush | 1 | 1 | | 5 |
5 | 93-92.708 | Ball bearing 6004 TN TGL 2981 20x42x12 | 1 | 1 | | 5 |
6 | 00-18.161 till 00-18.163 | Distance spacer 0.2; 0.3; 0.5 | if requ. | if requ. | | |
7 | 11-47.044 | Spacer for sprocket | 1 | 1 | | |
| 11-47.019 | Sprocket wheel at gearbox 16 teeth | 1 | 1 | | |
8 | 11-47.018 | Sprocket wheel at gearbox 15 teeth | 1 | 1 | | |
9 | 01-47.008 | Locking plate | 1 | 1 | | 10 |
10 | 00-06.008 | Nut for sprocket wheel fastening M 20x1 left-handed | 1 | 1 | | |
11 | 94-38.064 | Spring washer B 12 TGL 7403 | 1 | 1 | | |
12 | 01-46.068 | Locking plate | 1 | 1 | | 20 |
13 | 94-31.242 | Nut M 12x1.5 TGL 0-934-6 left-handed | 1 | 1 | | |
14 | 11-47.034 | Layshaft | 1 | 1 | | 5 |
15 | 93-93.106 | Ball bearing 6201 TN C 3 TGL 2981 12x32x10 | 1 | 1 | | 10 |
16 | 00-18.063 | Splash washer for layshaft | 1 | 1 | | 5 |
17 | 11-47.050 | Sliding gear (3rd gear) | 12 | 12 | | 5 |
18 | 11-47.050 | Sliding gear (1st gear) | 12 | 12 | | 5 |
| 00-03.045 | Circlip | 1 | 1 | | |
19 | 11-47.016 | Gear (1st gear) | 1 | 1 | | 3 |
| | 1 MM 125/2 till engine no. 7372908 MM 150/2 till engine no. 6587572 | | | | |
| | 2 are delivered in pairs only | | | | |

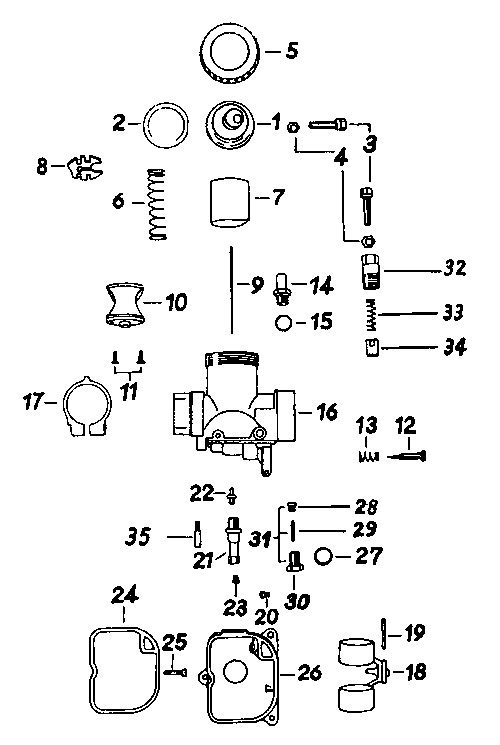

Ref.No. | Part.No. | Description | Quantity | Remarks | x |
| | | MM/21 | MM/3 | | |
| 93-77.380 | Monoblock-Starting device carburettor 22 N 1-3 | 1 | 1 | | 2 |
| 93-77.428 | Monoblock-Starting device carburettor 24 N 1-1 | 1 | 1 | | 2 |
1 | 80-30.320 | Mixing chamber cap 2931 | 1 | 1 | | |
2 | 80-30.325 | Gasket 2936 | 1 | 1 | | |
3 | 80-30.303 | Cable adjuster 2914 | 1 | 1 | | |
4 | 80-30.101 | Hexagon nut 0002 | 1 | 1 | | |
5 | 80-30.322 | Mixing chamber top 2933 | 1 | 1 | | |
6 | 80-30.329 | Throttle return spring 2946 | 1 | 1 | | |
7 | 80-30.343 | Throttle valve (30) 2952 | 1 | 1 | | |
8 | 80-30.327 | Needle clip 2943 | 1 | 1 | | |
9 | 80-30.319 | Jet needle C 3 2930 | 1 | 1 | | |
10 | 80-30.324 | Jet block complete 2935 | 1 | 1 | | |
| 80-30.309 | Jet block complete 2923 | 1 | 1 | | |
11 | 80-00.304 | Oval head screw BM 4x10 TGL 5687 | 2 | 2 | | |
12 | 80-30.108 | Air adjusting screw 0013 | 1 | 1 | | |
13 | 80-30.107 | Spring 0011 | 1 | 1 | | |
14 | 80-30.307 | Petrol pipe nipple 6 mm C 6 TGL 39-388 2921 | 1 | 1 | fitted fastly to mixing chamber from 1976 | |
15 | 80-60.105 | Fibre washer C 10x14 TGL 0-7603-Vf | 1 | 1 | | |
16 | 80-30.323 | Mixing chamber 2934 | 1 | 1 | | |
| 80-30.308 | Mixing chamber 2922 | 1 | 1 | | |
17 | 80-30.126 | Clamping ring complete 0121 | 1 | 1 | | |
18 | 80-30.316 | Float 2928 | 1 | 1 | | |
19 | 80-03.024 | Dowel pin 2.5 m 6x25 TGL 0-7 | 1 | 1 | | |
20 | 80-30.129 | Starting jet (70) 0125 | 1 | 1 | | |
| 80-30.130 | Starting jet (75) 0125 | 1 | 1 | | |
21 | 80-30.315 | Jet holder 2927 | 1 | 1 | | |
22 | 80-30.312 | Needle jet (65) 2926 | 1 | 1 | | |
23 | 80-30.131 | Main jet (90) 0125 | 1 | 1 | | |
| 80-30.133 | Main jet (95) 0125 | 1 | 1 | | |
24 | 80-30.321 | Fibre washer 2932 | 1 | 1 | | |
25 | 94-15.121 | Cylinder head screw AM 4x16 TGL 0-84 | 1 | 1 | | |
26 | 80-30.310 | Float chamber 2924 | 1 | 1 | | |
27 | 80-60.105 | Fibre washer C 10x14 TGL 0-7603-Vt | 1 | 1 | | |
28 | 80-30.160 | Needle seating (15) 1534 | 1 | 1 | | |
29 | 80-30.159 | Float needle 1533 | 1 | 1 | | |
30 | 80-30.302 | Float needle cover nut 2911 | 1 | 1 | | |
31 | 80-30.300 | Float needle valve compl. (15) 2910 | 1 | 1 | | |
32 | 80-30.299 | Starting device cover nut 2907 | 1 | 1 | | |
33 | 80-30.296 | Spring 2903 | 1 | 1 | | |
34 | 80-30.297 | Plunger 2905 | 1 | 1 | | |
| 80-30.298 | Rubber plate for plunger 2906 | 1 | 1 | | |
35 | 80-30.304 | Pilot jet (35) 2916 | 1 | 1 | | |
| 80-30.305 | Pilot jet (40) 2916 | 1 | 1 | | |
